Curtis Instruments Inc.United States

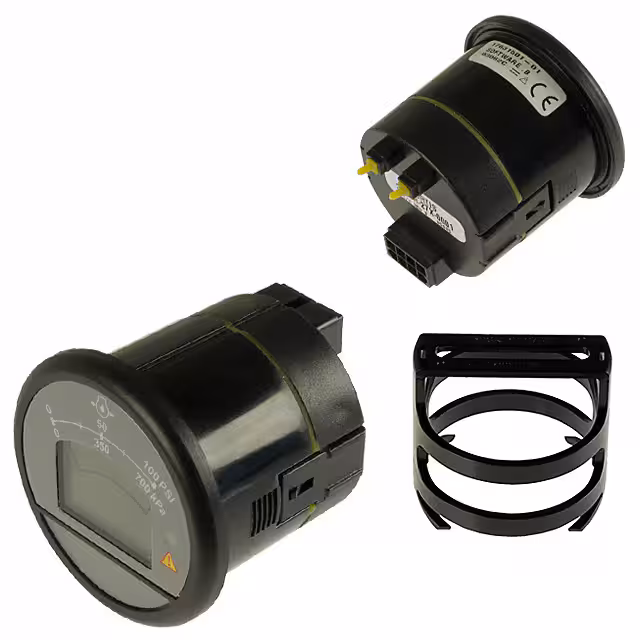

PROCESS MTR 0-100PSI LCD PNL MT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 12VDC |
| Environment and package | |
| Display Characters - Height | 0.196" (5.00mm) |
| Mounting Type | Panel Mount |
| Operating Temperature | -40°C~85°C |
| Panel Cutout Dimensions | Circular - 52.00mm Dia |
| Other | |
| Display Type | LCD - Black Bar Graph |
| Features | Hour Meter |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Measuring Range | 0 ~ 100psi |
| Measuring Type | Process |
| Mfr | Curtis Instruments Inc. |
| Number of Characters Per Row | 10-Segment, 5 Digit |
| Output Type | Solid State |
| Product Status | Obsolete |
| Series | enGage™ II, 3000 |
| Termination Style | Connector |
| Type | Process Meter |
| Weight | - |
Documents
No documents are linked to this part yet.
