Bourns Inc.United States

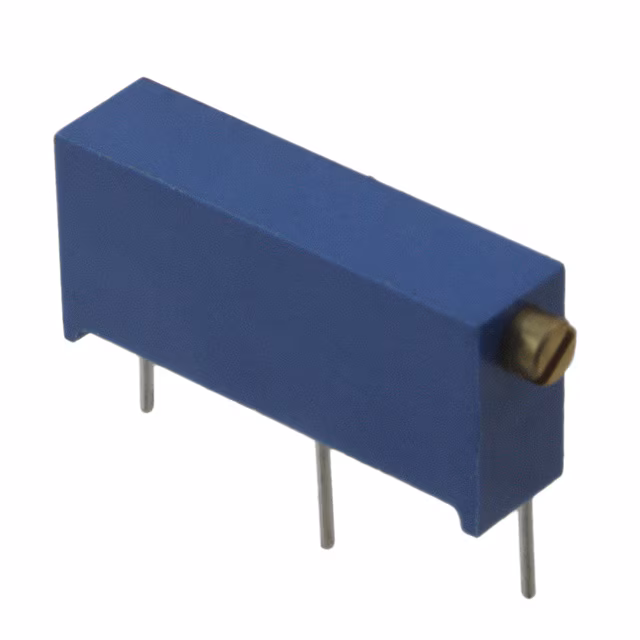

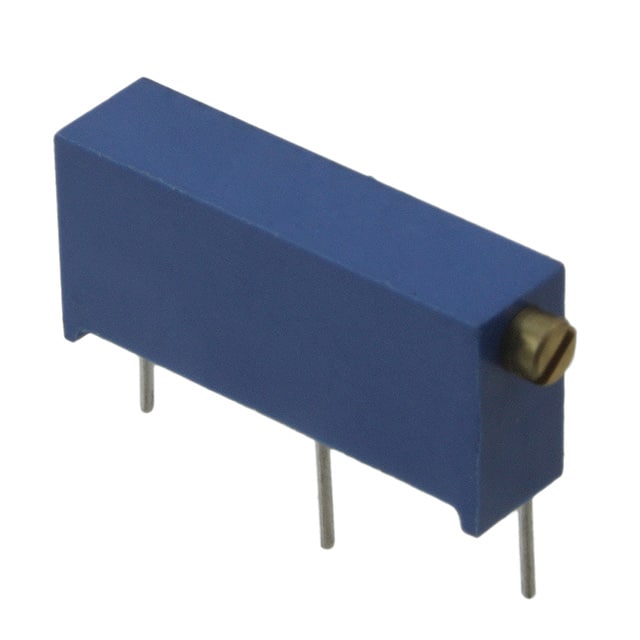

TRIMMER 500K OHM 0.75W PC PIN
All alternatives
View full reportTechnical parameters
Key specs
Resistance500 kΩ
Tolerance10 %
Power750 mWMax
Turns15
| Power | |
|---|---|
| Power (Watts) | 0.75W, 3/4W |
| Environment and package | |
| Mounting Type | Through Hole |
| Package | Tube |
| Size / Dimension | Rectangular - 0.354" x 0.190" Face (8.98mm x 4.83mm) |
| Temperature Coefficient | ±100ppm/°C |
| Other | |
| Adjustment Type | Side Adjustment |
| Base Product Number | 3009P |
| Mfr | Bourns Inc. |
| Number of Turns | 15 |
| Product Status | Active |
| Resistance | 500 kOhms |
| Resistive Material | Cermet |
| Series | Trimpot® 3009 - Sealed |
| Termination Style | PC Pins |
| Tolerance | ±10% |
