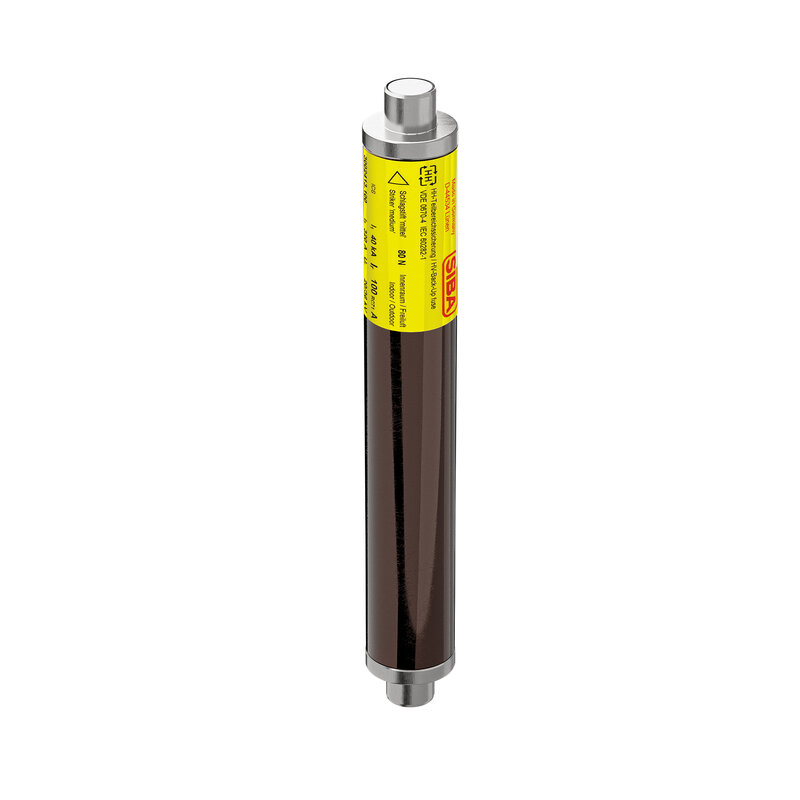

HHD-BU - Fuse-Link | Back-Up | e=537 | 20/36 kV | 63RC55A | ICS | Striker 'medium' | 80 N | Indoor / Outdoor | HV-Fuse-Link | DIN-Standard
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Rated current | 63RC55A |
| Rated voltage | 20/36 kV |
| Environment and package | |
| Dimensions | e=537 |
| Other | |
| 3D file | 3D file |
| Characteristic | Back-Up |
| Constructions | ICS |
| DIN | DIN 43625 |
| Indicator / Striker Pin | 80 N |
| Indicator / Striker type | Striker 'medium' |
| Indoor / Outdoor | Indoor / Outdoor |
| Item number | 3002413.63 |
| Product group | HV-Fuse-Link |
| Product subgroup | DIN-Standard |
| Rated breaking capacity | 40 kA |
| Standard IEC | IEC 60282-1 |
| Type | Fuse-Link |
