AmphenolUnited States

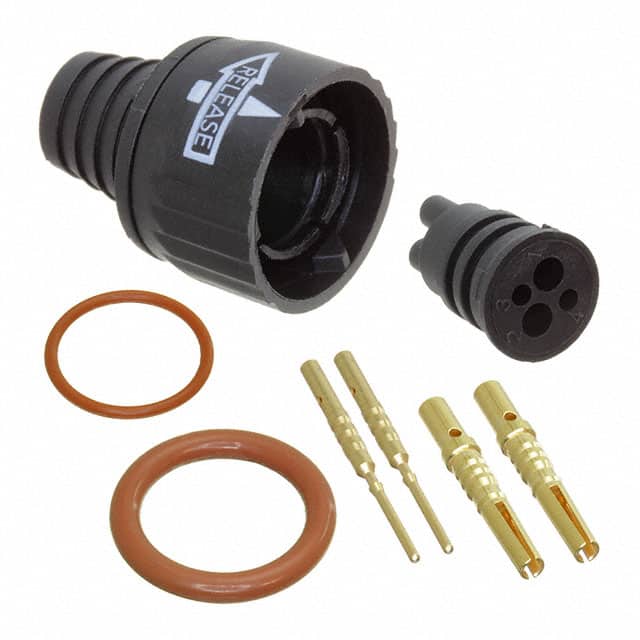

CONN PLUG MALE 4P GOLD SLDR CUP
All alternatives
View full reportTechnical parameters
Key specs
Positions4
GenderMale
Current rating7 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 3A, 7A |
| Voltage Rating | 300V |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -20°C~105°C |
| Package | Bulk |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Other | |
| Applications | Medical |
| Backshell Material, Plating | - |
| Cable Opening | - |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Material | Brass |
| Fastening Type | Latch Lock |
| Features | Strain Relief |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | - |
| Material Flammability Rating | - |
| Mfr | Amphenol Alden Products Company |
| Number of Positions | 4 |
| Orientation | 1 |
| Primary Material | Plastic |
| Product Status | Active |
| Series | PL-700SM-N |
| Shell Finish | - |
| Shell Material | Thermoplastic |
| Shielding | Unshielded |
| Termination | Solder Cup |
