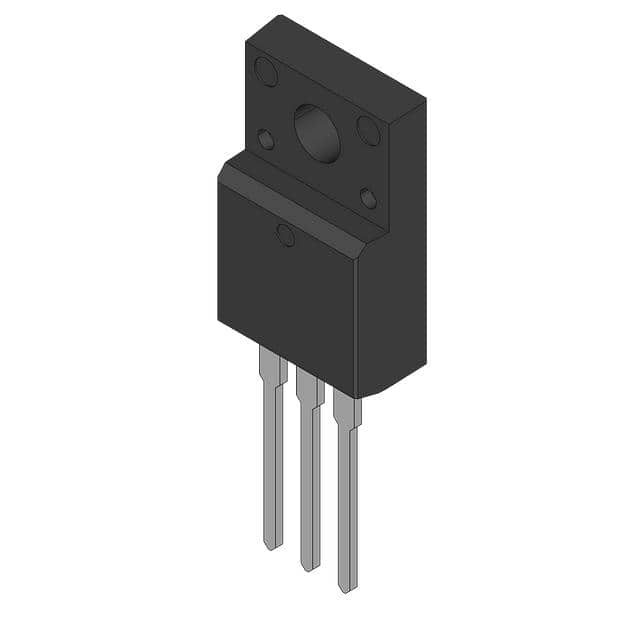

MOSFET N-CH 500V 11A TO220F-3FS
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage500 V
Continuous drain current11 A
On-resistance430 mΩMax · 8A
Gate threshold voltage5 VMax · 1mA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Drain to Source Voltage (Vdss) | 500 V |
| Power Dissipation (Max) | 2W (Ta), 40W (Tc) |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C |
| Package | Tube |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220F-3FS |
| Other | |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 46.6 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1200 pF @ 30 V |
| Mfr | Fairchild Semiconductor |
| Product Status | Obsolete |
| Rds On (Max) @ Id, Vgs | 430mOhm @ 8A, 10V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±30V |
| Vgs(th) (Max) @ Id | 5V @ 1mA |
