Micro Commercial CoUnited States

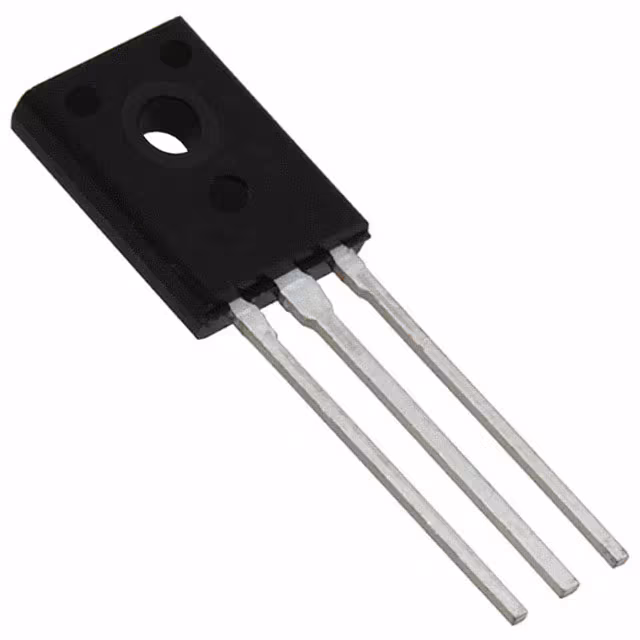

TRANS NPN 160V 1.5A TO126
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage160 V
Collector current1.5 AMax
DC current gain100150mA
Power1 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| Current - Collector (Ic) (Max) | 1.5 A |
| Power - Max | 1 W |
| Voltage - Collector Emitter Breakdown (Max) | 160 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 5V |
| Frequency - Transition | 140MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Bulk |
| Package / Case | TO-225AA, TO-126-3 |
| Supplier Device Package | TO-126 |
| Other | |
| Base Product Number | 2SD669 |
| Mfr | Micro Commercial Co |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA |
