Rohm SemiconductorJapan

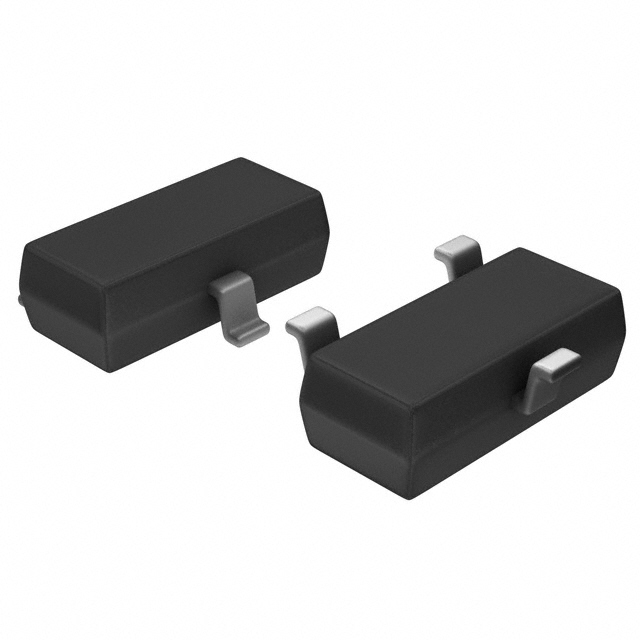

TRANS NPN 32V 0.8A SMT3
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage32 V
Collector current800 mAMax
DC current gain180100mA
Power200 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 500nA (ICBO) |
| Current - Collector (Ic) (Max) | 800 mA |
| Power - Max | 200 mW |
| Voltage - Collector Emitter Breakdown (Max) | 32 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 180 @ 100mA, 3V |
| Frequency - Transition | 150MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

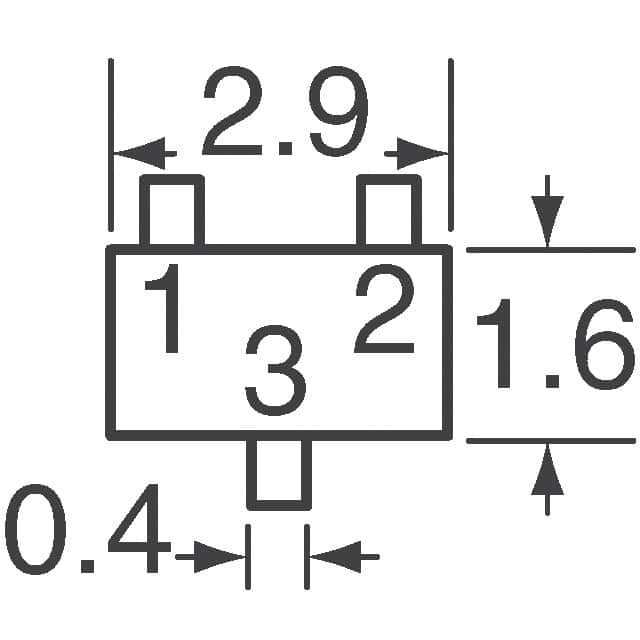

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SMT3 |
| Other | |
| Base Product Number | 2SD1781 |
| Mfr | Rohm Semiconductor |
| Product Status | Active |
| Series | - |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 50mA, 500mA |
