2SC4808G0L
PanasonicJapan

2SC4808G0L

ObsoleteTransistors - Bipolar (BJT) - RF

RF TRANS NPN 10V 6GHZ SSMINI3-F3

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current - Collector (Ic) (Max)80mA
Power - Max125mW
Voltage - Collector Emitter Breakdown (Max)10V
AC and DC characteristics
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 20mA, 8V
Frequency - Transition6GHz
Gain11dB ~ 14dB
Noise Figure (dB Typ @ f)1.3dB ~ 2dB @ 800MHz
Environment and package
Mounting TypeSurface Mount
Operating Temperature125°C(TJ)
PackageTape & Reel (TR); Cut Tape (CT); Digi-Reel®

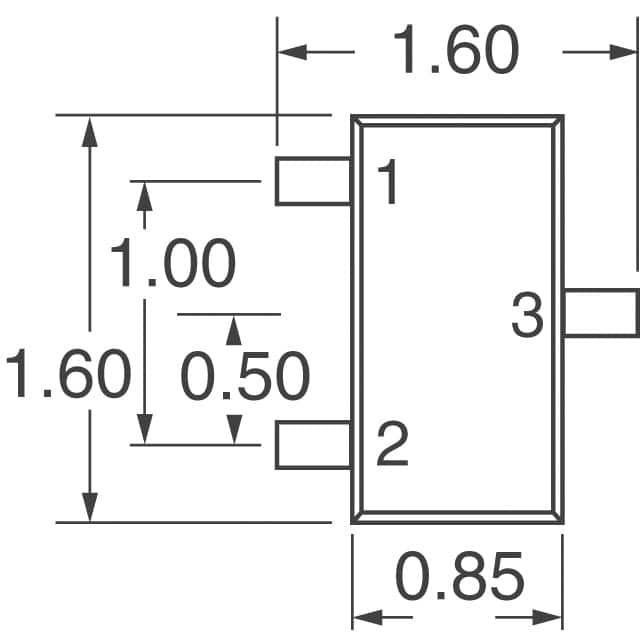

Package / CaseSC-89, SOT-490
Supplier Device PackageSSMini3-F3
Other
Base Product Number2SC4808
MfrPanasonic Electronic Components
Product StatusObsolete
Series-
Transistor TypeNPN

Documents

No documents are linked to this part yet.
