Micro Commercial CoUnited States

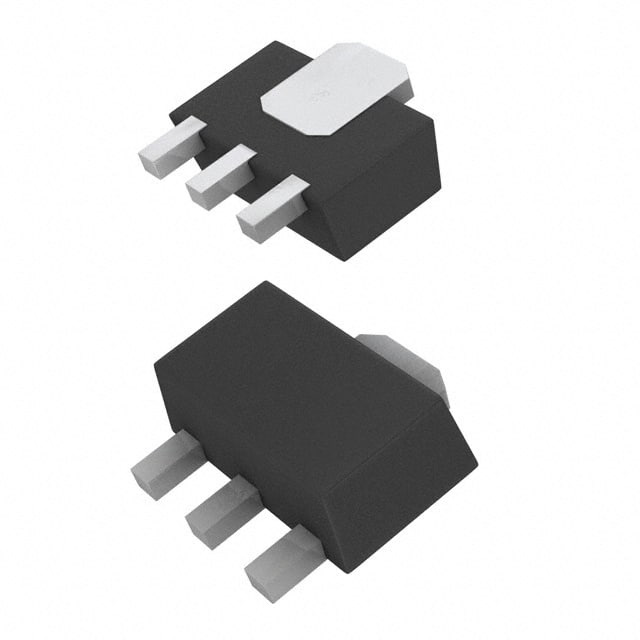

TRANS PNP 50V 2A SOT89
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage50 V
Collector current2 AMax
DC current gain82500mA
Power500 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 2 A |
| Power - Max | 500 mW |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 82 @ 500mA, 2V |
| Frequency - Transition | 200MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Box (TB) |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89 |
| Other | |
| Base Product Number | 2SA1797 |
| Mfr | Micro Commercial Co |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 350mV @ 50mA, 1A |
