onsemiUnited States

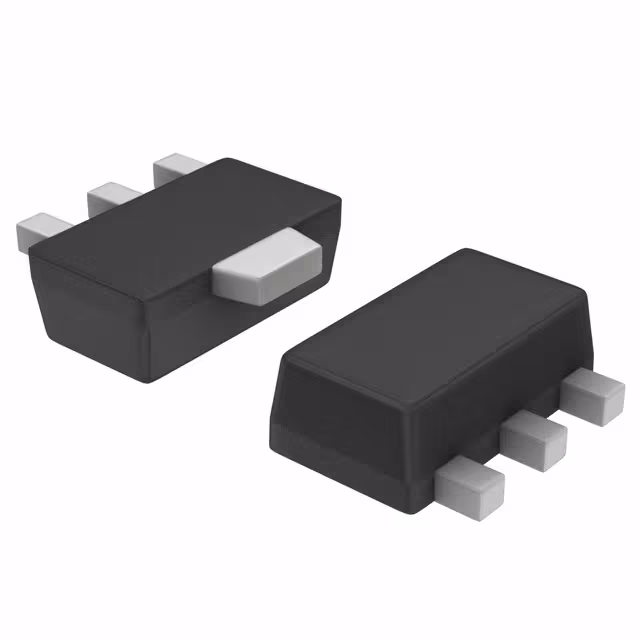

TRANS PNP 100V 2A PCP
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage100 V
Collector current2 AMax
DC current gain100100mA
Power500 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 2 A |
| Power - Max | 500 mW |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 100mA, 5V |
| Frequency - Transition | 120MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-243AA |
| Supplier Device Package | PCP |
| Other | |
| Base Product Number | 2SA1417 |
| Mfr | onsemi |
| Product Status | Active |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 100mA, 1A |
