Micro Commercial CoUnited States

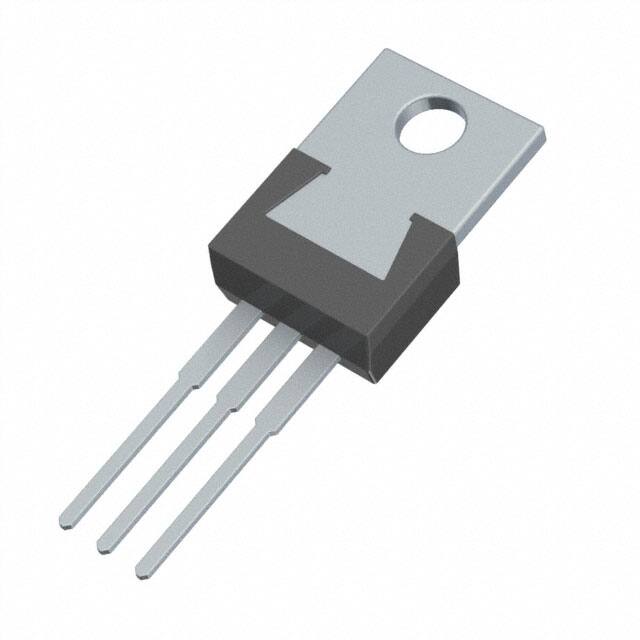

TRANS NPN DARL 100V 8A TO220AB
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage100 V
Collector current8 AMax
DC current gain10003A
Power75 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 20µA (ICBO) |
| Current - Collector (Ic) (Max) | 8 A |
| Power - Max | 75 W |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 3A, 4V |
| Frequency - Transition | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -60°C~150°C(TJ) |
| Package | Tape & Box (TB) |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |
| Other | |
| Base Product Number | 2N6045 |
| Mfr | Micro Commercial Co |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | NPN - Darlington |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 80mA, 8A |
