View full reportTechnical parameters
| Power | |
|---|---|
| Current - Drain (Idss) @ Vds (Vgs=0) | 5 mA @ 15 V |
| Power - Max | 300 mW |
| Voltage - Breakdown (V(BR)GSS) | 30 V |
| Voltage - Cutoff (VGS off) @ Id | 3 V @ 1 nA |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -50°C ~ 150°C (TJ) |

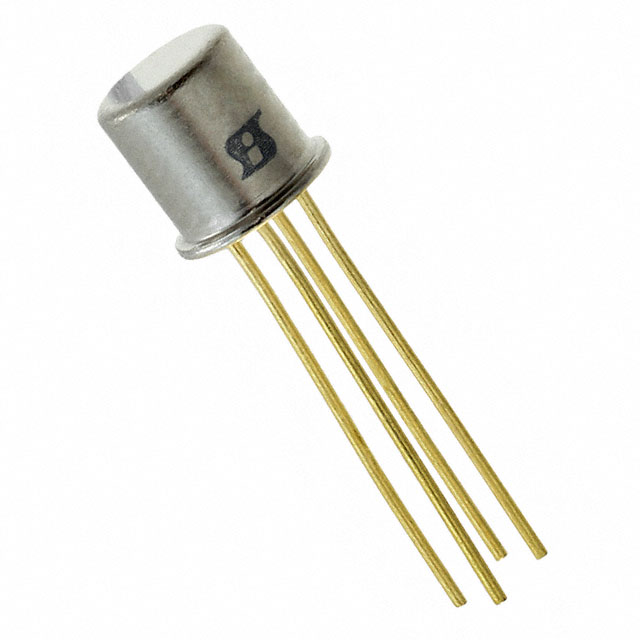

| Package / Case | TO-206AF, TO-72-4 Metal Can |
| Supplier Device Package | TO-206AF (TO-72) |
| Other | |
| Base Product Number | 2N4416 |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 4pF @ 15V |
| Manufacturer | Vishay Siliconix |
| Packaging | Bulk |
| Part Status | Obsolete |
| Series | - |
