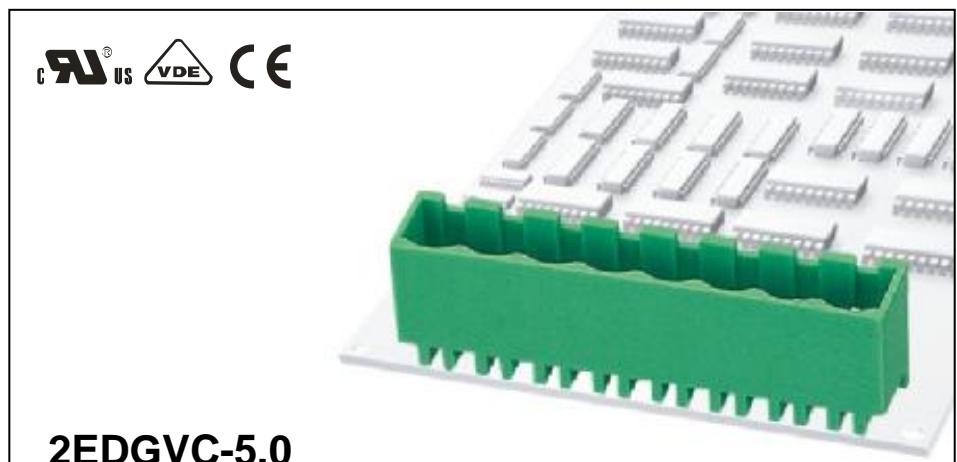

2EDGVC-5.0 2EDGVC-5.08

2EDGVC-5.0 2EDGVC-5.08

DegsonChina

2EDGVC-5.08-04P-14-00Z(H)

Pluggable Terminal Blocks

PLUGGABLE TERMINAL BLOCK 300V 15A 4P 5.08MM PITCH

Degson 2EDGVC-5.08-04P-14-00Z(H) pluggable terminal block, 5.08mm pitch, 4 positions, rated current 20A, operating temperature -40°C~+105°C, PA66 housing.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Rows2
Pitch5.08 mm
Current rating20 AMax

Datasheet-verified parameters

10 items
ParameterValue and test conditionsSource
Poles4P
Rows2
Pitch5.08mm(.200%)
Rated current20A (IEC)
Rated voltage320V (IEC)
Withstanding voltageAC2500V/1Min
Ambient temperature-40°C~+105 °C
Housing MaterialPA66,UL94 V-0
Pin header MaterialBrass,Tin-plated
ApprovalUL, IEC, VDE, CE
All parameters (8)ExpandCollapse
Power
Rated current15A
Rated voltage300V
Withstanding voltageAC2500V/1Min
Environment and package
Ambient temperature-40°C~+105 °C
Other
HousingPA66,UL94 V-0
Pin headerBrass,Tin-plated
Pitch5.08mm(.200')
Poles4P

Documents

DatasheetDatasheet · 60.1 KB · 2026-10-29
Open document center

Datasheet-verified content is extracted by AI from the manufacturer datasheet. Click a page number to view the original.
