2D-2D
KüblerGermany

2D-2D

Active

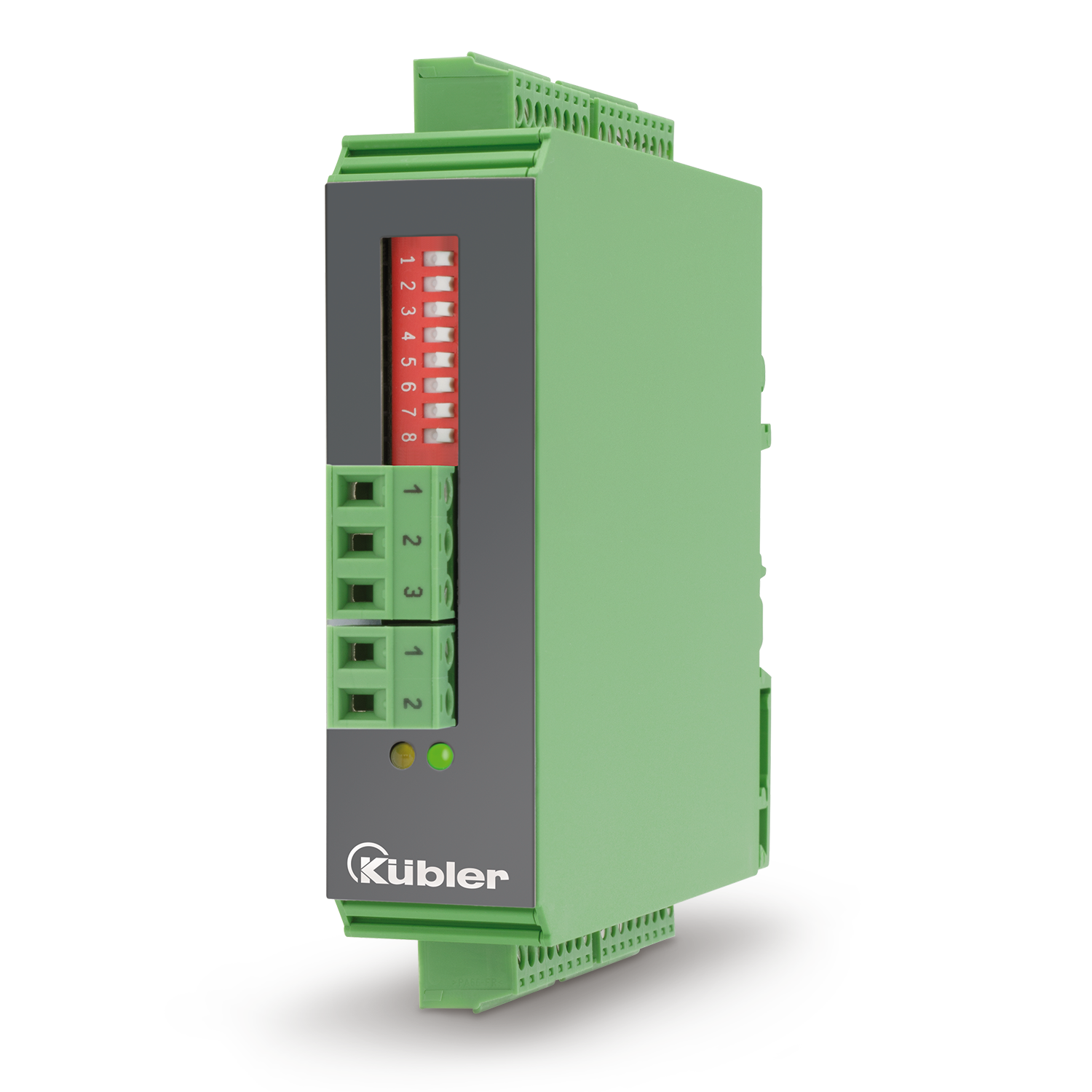

Signal splitter – distributes and controls different input signals. TTL / RS422, HTL/Push-Pull

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
Power supply12...30 V DC
Environment and package
Dimension22 mm x 102 mm x 102 mm
Working temperature-20 °C ... 60 °C
Other
Connection typesScrew terminals
Input interfacesHTL TTL / RS422
Inputs codingA, B, 0 A, A|, B, B|, 0, 0|
Output interfacesHTL TTL / RS422
Outputs codingA, B, 0 A, A|, B, B|, 0, 0|
Protection levelIP20
SP 2D-2D PDF ∼ 501,1 KB | 09.2025DE EN FR
SP 2D-2D PDF ∼ 722,6 KB | 09.2025DE EN FR
