TE ConnectivitySwitzerland

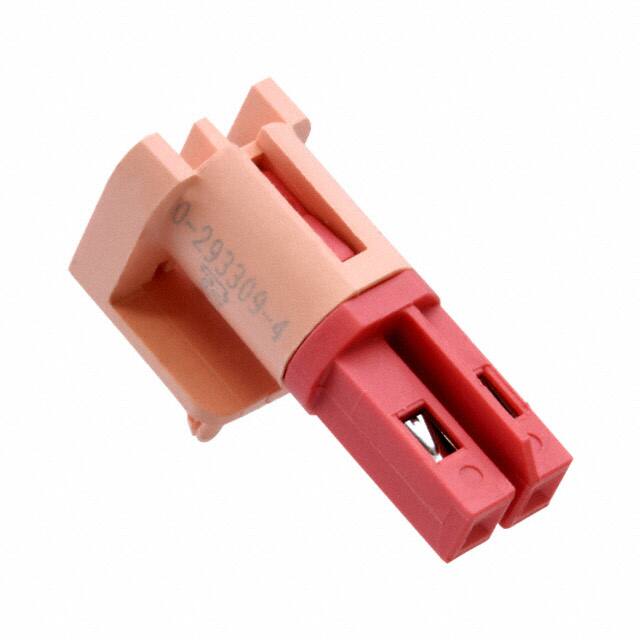

CONN SSL PLUG 2POS 3.7MM SOLDER
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 7A |
| Voltage Rating | - |
| Environment and package | |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -40°C~120°C |
| Package | Bulk |
| Other | |
| Base Product Number | 293311 |
| Connector Type | Plug, Female Sockets |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Fastening Type | - |
| Features | Board Lock, Keying HV-2 |
| Housing Color | Red |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Ingress Protection | - |
| Mating Cycles | - |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 2 |
| Pitch | 0.146" (3.70mm) |
| Product Status | Obsolete |
| Series | Nector S |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Wire Gauge | - |
