Alpha WireUnited States

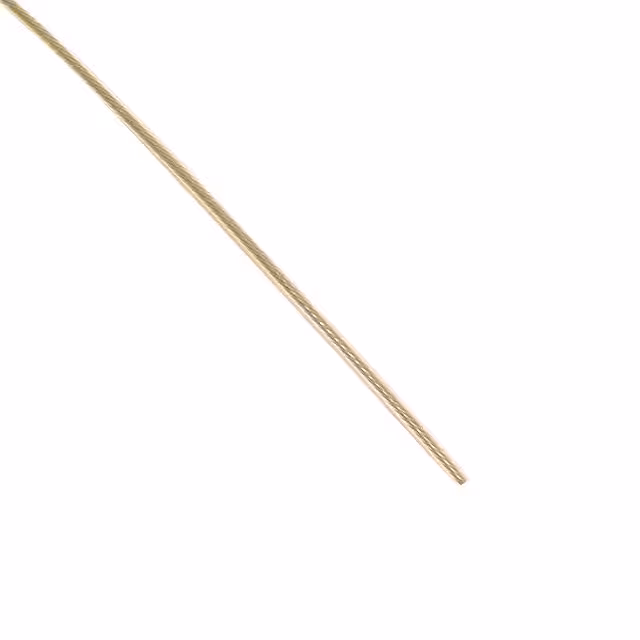

HOOK-UP STRND 22AWG YELLOW 1000'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 600V |
| Environment and package | |
| Operating Temperature | -150°C~300°C |
| Package | Spool |
| Other | |
| Base Product Number | 2922 |
| Cable Type | Hook-Up |
| Conductor Material | Copper, Nickel Coated |
| Conductor Strand | 19/34 |
| Features | Chemical Resistant, High Temperature, UV Resistant |
| Jacket Color | Yellow |
| Jacket (Insulation) Diameter | 0.041" (1.04mm) |
| Jacket (Insulation) Material | Fluoropolymer |
| Jacket (Insulation) Thickness | 0.006" (0.15mm) |
| Length | 1000.0' (304.8m) |
| Mfr | Alpha Wire |
| Product Status | Obsolete |
| Ratings | UL Style 11540 |
| Series | ThermoThin |
| Wire Gauge | 22 AWG |
Documents
No documents are linked to this part yet.
