Phoenix ContactGermany

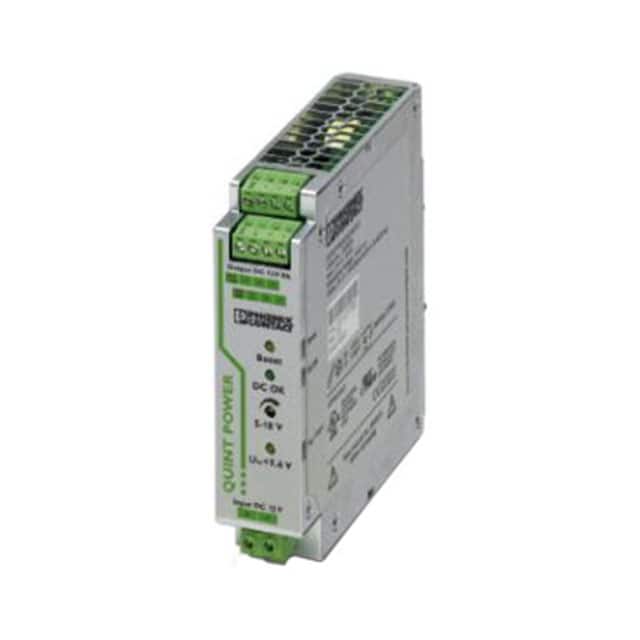

DC/DC CONVERTER 12V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 8A |
| DC Voltage - Input (Max) | 18V |
| DC Voltage - Input (Min) | 9V |
| Power (Watts) | - |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Operating Temperature | -25°C~75°C(WithDerating) |
| Package | Bulk |
| Size / Dimension | 4.92" L x 1.26" W x 5.12" H (125.0mm x 32.0mm x 130.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | cUL, cULus, EAC, UL |
| Efficiency | 89% |
| Features | Adjustable Output, IP20 |
| Input Type | DC |
| Mfr | Phoenix Contact |
| Minimum Load Required | - |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | Quint |
