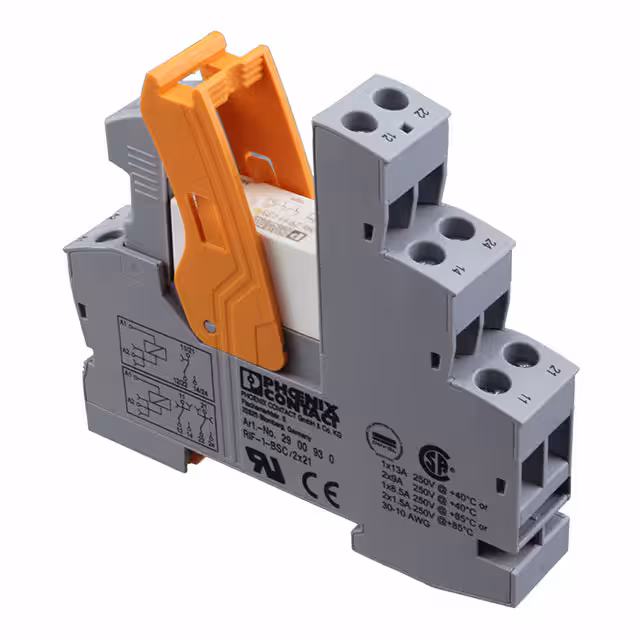

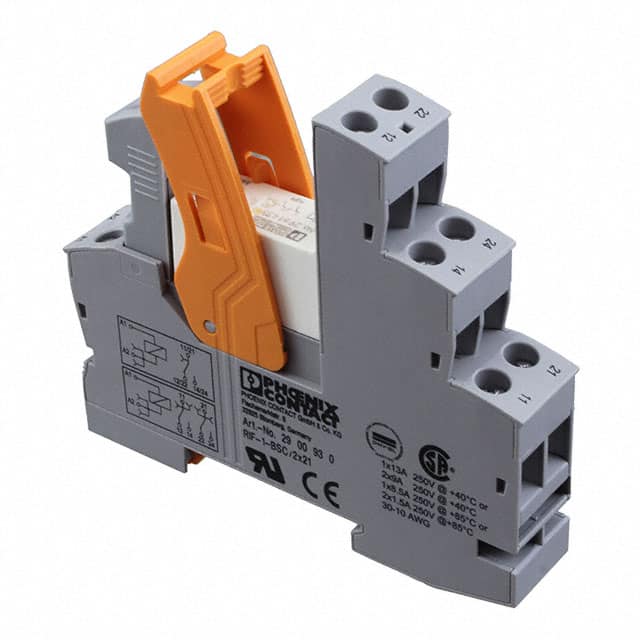

Phoenix ContactGermany
RELAY GEN PURPOSE DPDT 8A 24V
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage24 V
Contact formDPDT
Contact current8 AMax
Switching voltage250 VMax
| Power | |
|---|---|
| Coil Current | 18 mA |
| Coil Voltage | 24VDC |
| Contact Rating (Current) | 8 A |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Switching Voltage | 250VAC, 250VDC - Max |
| Environment and package | |
| Mounting Type | DIN Rail |
| Operating Temperature | -40°C~70°C |
| Package | Bulk |
| Other | |
| Coil Insulation | - |
| Coil Resistance | 1.33 kOhms |
| Coil Type | Non Latching |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Features | Diode, Lighted Indicator, Socket Included |
| Mfr | Phoenix Contact |
| Operate Time | 8 ms |
| Product Status | Active |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | - |
| Series | RIF |
| Termination Style | Screw Terminal |
