Phoenix ContactGermany

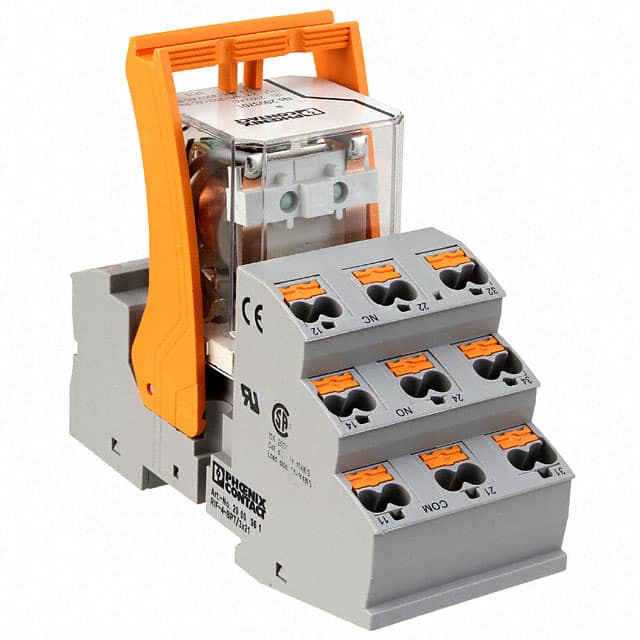

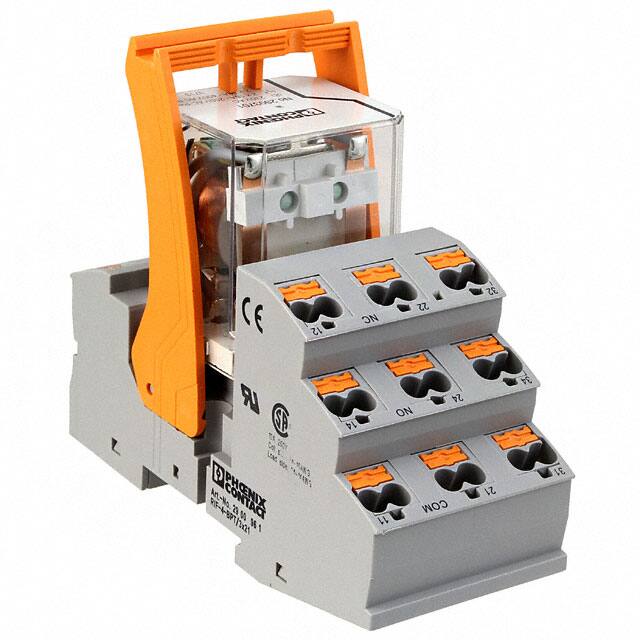

RELAY GEN PURPOSE DPDT 9A 230V
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage230 V
Contact formDPDT
Contact current9 AMax
Switching voltage440 VMax
| Power | |
|---|---|
| Coil Current | 14 mA |
| Coil Voltage | 230VAC |
| Contact Rating (Current) | 9 A |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Switching Voltage | 440VAC, 250VDC - Max |
| Environment and package | |
| Mounting Type | DIN Rail |
| Operating Temperature | -40°C~40°C |
| Package | Bulk |
| Other | |
| Coil Insulation | - |
| Coil Type | Non Latching |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Features | Lighted Indicator, Socket Included, Varistor |
| Mfr | Phoenix Contact |
| Operate Time | 25 ms |
| Product Status | Obsolete |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Seal Rating | - |
| Series | RIF |
| Termination Style | Spring Terminal |
