Pololu CorporationUnited States

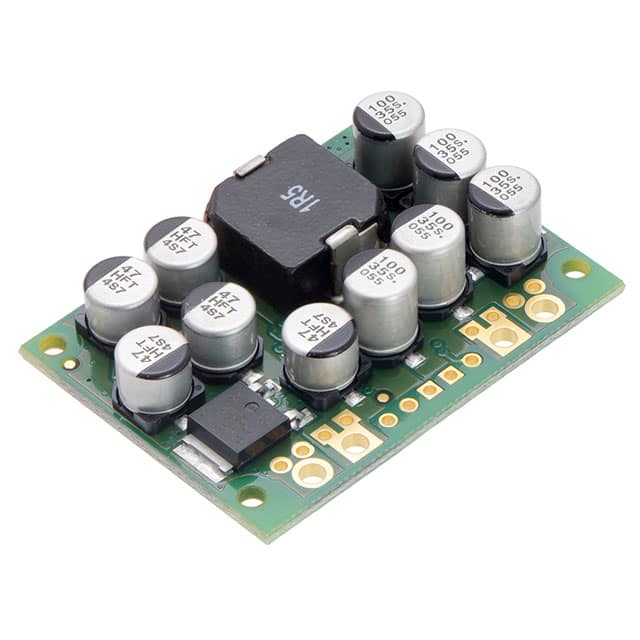

DC DC CONVERTER 3.3V 50W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage4.5 ~ 40 V
Output voltage3.3 V
Output current15 AMax
Power50 WMax
IsolationNon-isolated
| Power | |
|---|---|
| Current - Output (Max) | 15A |
| Power (Watts) | 50 W |
| Voltage - Input (Max) | 40V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | - |
| Package | - |
| Package / Case | 13-DIP Module |
| Size / Dimension | 1.70" L x 1.25" W x 0.43" H (43.2mm x 31.8mm x 10.9mm) |
| Supplier Device Package | - |
| Other | |
| Applications | - |
| Approval Agency | - |
| Control Features | Enable, Active Floating |
| Efficiency | 95% |
| Features | - |
| Mfr | Pololu Corporation |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | D24V150 |
| Type | Non-Isolated PoL Module |
