Phoenix ContactGermany

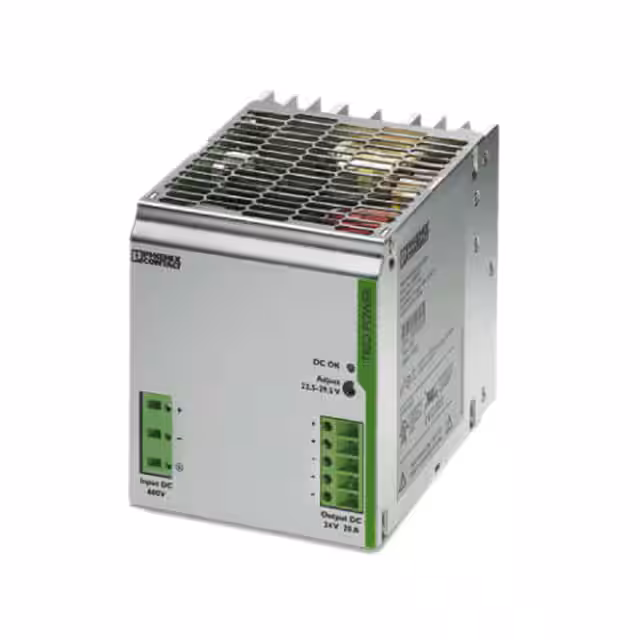

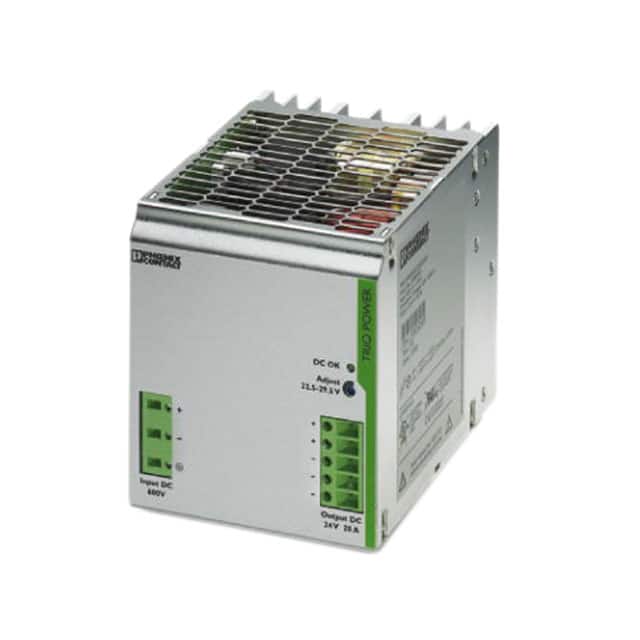

DC/DC CONVERTER 24V 480W
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output (Max) | 20A |
| DC Voltage - Input (Max) | 840V |
| DC Voltage - Input (Min) | 450V |
| Power (Watts) | 480W |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Operating Temperature | -25°C~70°C |
| Package | Bulk |
| Size / Dimension | 6.00" L x 4.53" W x 5.12" H (152.5mm x 115.0mm x 130.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | cULus |
| Efficiency | 91% |
| Input Type | DC |
| Mfr | Phoenix Contact |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | TRIO (480W) |
