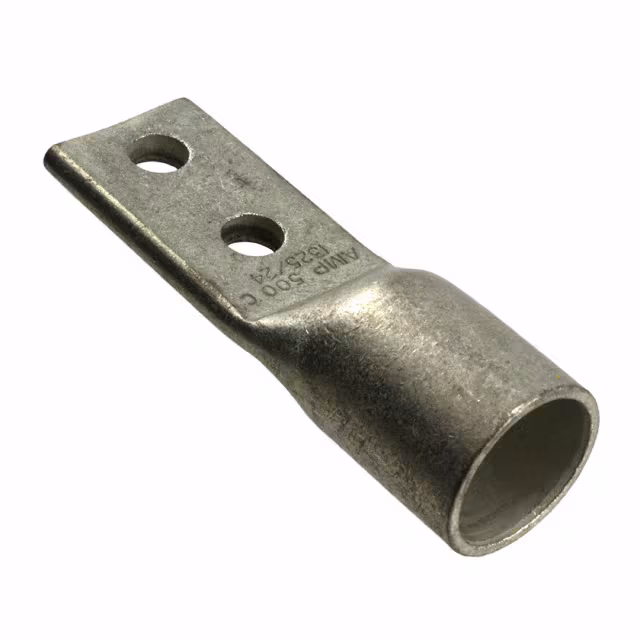

CONN TERM RECT 500 MCM #3/8
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bulk |
| Stud/Tab Size | 3/8 Stud |
| Other | |
| Base Product Number | 276887 |
| Color | - |
| Contact Finish | Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.981" (24.92mm) |
| Diameter - Barrel OD | 1.219" (30.96mm) |
| Diameter - Ring ID | 0.406" (10.31mm) |
| Features | - |
| Insulation | Non-Insulated |
| Length - Overall | 4.010" (101.85mm) |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | Ampower |
| Tab Thickness | 0.260" (6.60mm) |
| Terminal Style | Two Stud Holes |
| Terminal Type | Standard |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.260" (32.00mm) |
| Wire Gauge | 500MCM (kcmil) |
