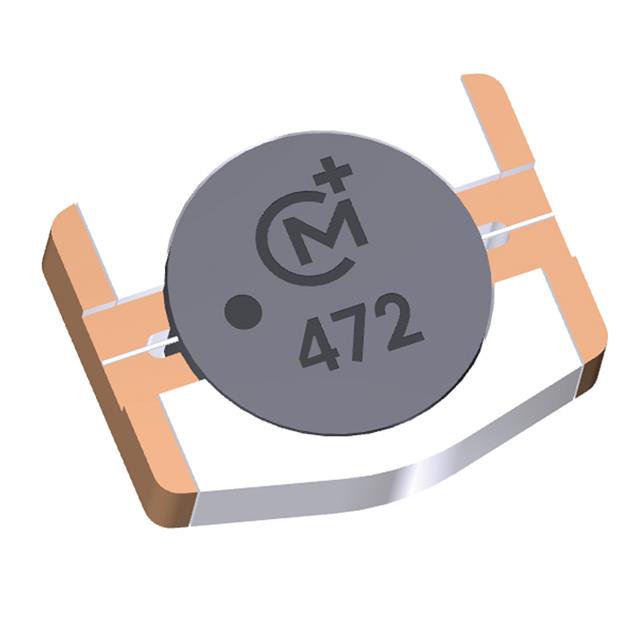

FIXED IND 6.8UH 1.4A 130MOHM SMD
All alternatives
View full reportTechnical parameters
Key specs
Inductance6.8 µH
Rated current1.4 AMax
DC resistance130 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 1.4 A |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Environment and package | |
| Height - Seated (Max) | 0.065" (1.65mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | Nonstandard |
| Size / Dimension | 0.354" L x 0.303" W (9.00mm x 7.70mm) |
| Supplier Device Package | - |
| Other | |
| Base Product Number | 27 |
| DC Resistance (DCR) | 130mOhm Max |
| Inductance | 6.8 µH |
| Material - Core | - |
| Mfr | Murata Power Solutions Inc. |
| Product Status | Active |
| Q @ Freq | - |
| Ratings | - |
| Series | 2700 |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Type | Wirewound |
