Phoenix ContactGermany

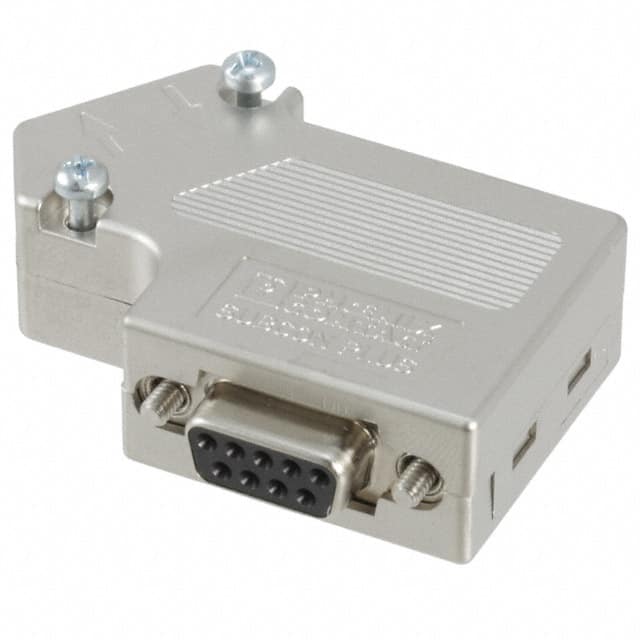

CONN D-SUB RCPT 9POS TERM BLK
All alternatives
View full reportTechnical parameters
Key specs
Positions9
Rows2
GenderFemale
Current rating1 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1A |
| Voltage Rating | 60V |
| Environment and package | |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -20°C~75°C |
| Package | Bulk |
| Shell Size, Connector Layout | 1 (DE, E) |
| Other | |
| Backset Spacing | - |
| Color | - |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | - |
| Contact Finish Thickness | - |
| Contact Form | - |
| Contact Material | - |
| Contact Type | Signal |
| Dielectric Material | Acrylonitrile Butadiene Styrene (ABS), Metal Plated |
| Features | Shielded |
| Flange Feature | Cable Side, Male Jackscrew (4-40) |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Mfr | Phoenix Contact |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Product Status | Active |
| Series | SUBCON |
| Shell Material, Finish | - |
| Termination | Terminal Block |
| Wire Gauge | - |
