Phoenix ContactGermany

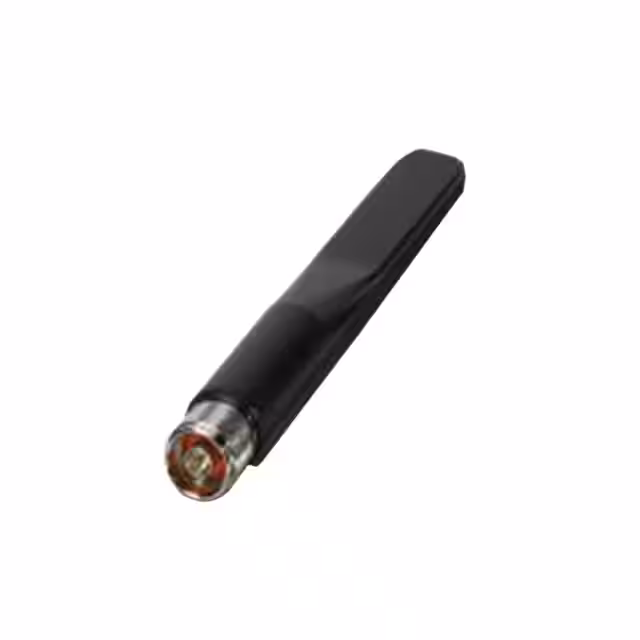

RF ANT 2.4GHZ/5GHZ WHIP STR N ML
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Center/Band) | 2.4GHz, 5GHz |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.83GHz |
| Gain | 2.5dBi, 5dBi |
| Environment and package | |
| Height (Max) | 7.087" (180.00mm) |
| Mounting Type | Connector Mount |
| Package | Bulk |
| Other | |
| Antenna Type | Whip, Straight |
| Applications | - |
| Features | - |
| Ingress Protection | IP68 |
| Mfr | Phoenix Contact |
| Number of Bands | 2 |
| Product Status | Active |
| Return Loss | - |
| RF Family/Standard | - |
| Series | - |
| Termination | N Type Male |
| VSWR | - |
