NorComp Inc.United States

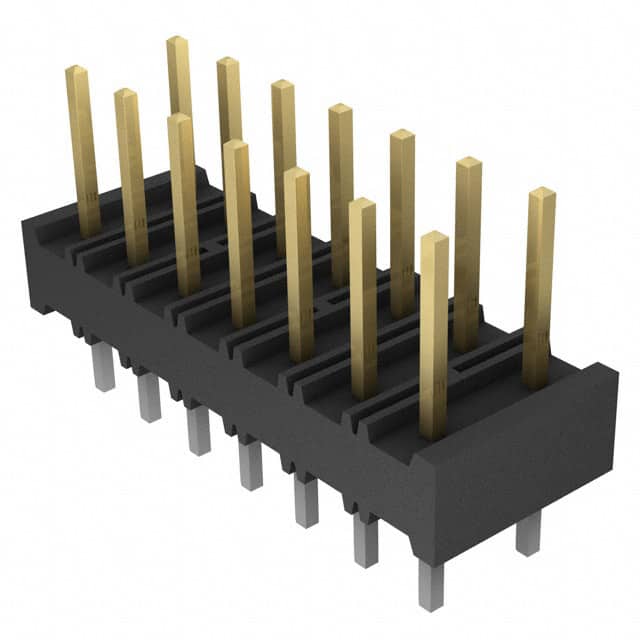

CONN HEADER VERT 14POS 2MM
All alternatives
View full reportTechnical parameters
Key specs
Positions14
Rows2
Pitch2 mm
GenderMale
Current rating1 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.059" (1.50mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~105°C |
| Package | Bulk |
| Other | |
| Applications | - |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 0.150" (3.81mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Material Flammability Rating | UL94 V-0 |
| Mfr | NorComp Inc. |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Overall Contact Length | 0.327" (8.30mm) |
| Pitch - Mating | 0.079" (2.00mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Series | 2664 |
| Shrouding | Unshrouded |
| Style | Board to Board or Cable |
| Termination | Solder |
