Fair-Rite Products Corp.United States

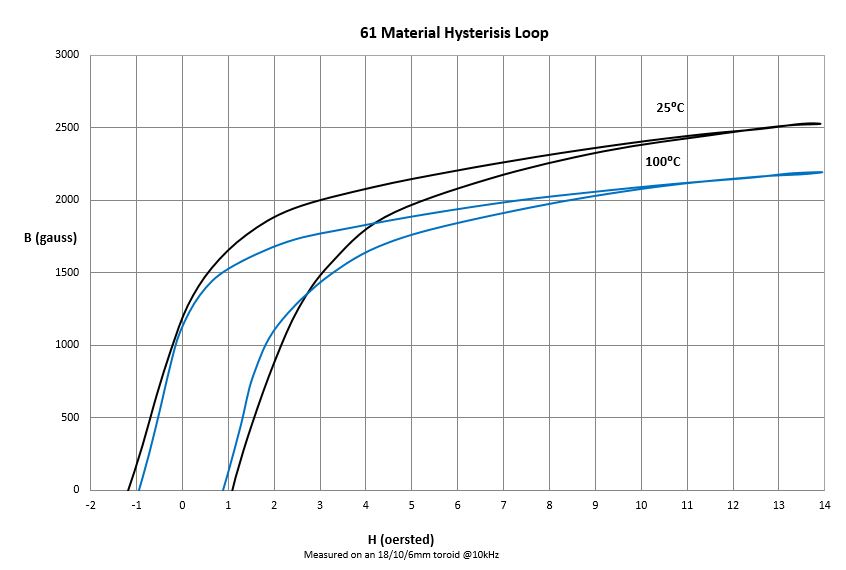

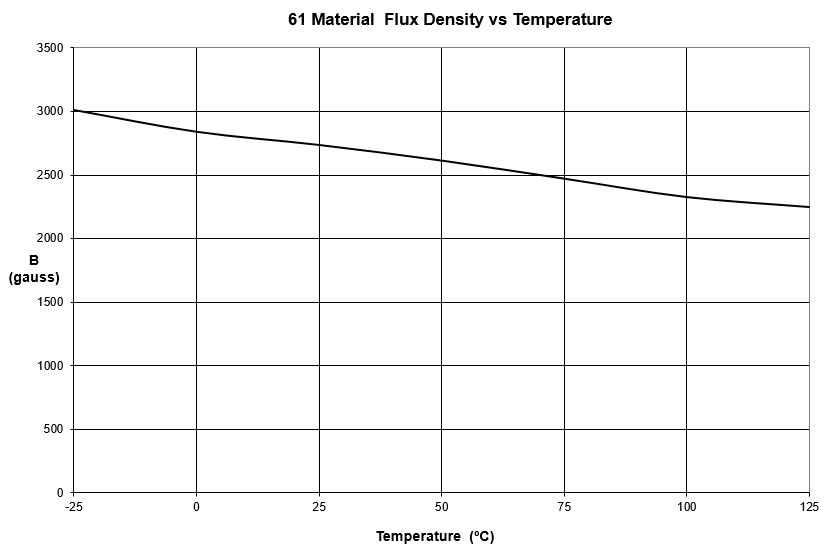

Part Number: 2661800302 61 CORE FOR COMMON MODE CHOKES Explanation of Part Numbers: – Digits 1 & 2 = Product Class – Digits 3 & 4 = Material Grade – Last digit 2 = Burnished (All cable cores have been burnished to remove the sharp edges) Fair-Rite offers a broad selection of ferrite EMI suppression cable cores in several materials with guaranteed minimum impedance specifications. For smaller suppression parts, refer to the section EMI Suppression Beads. Our Expanded Cable and Suppressor Kit (part number 0199000005) contains a selection of these suppression cores. The C dimension may be modified to suit specific applications. 1.9 (g) Σl/A : Core Constant, l : Effective Path Length, A : Effective Cross-Sectional Area, V : Effective Core Volume A : Inductance Factor A high frequency NiZn ferrite developed for a range of inductive applications up to 25 MHz. This material is also used in EMI applications for suppression of noise frequencies above 200 MHz. Excellent stability characteristics. EMI Suppression Beads Beads On Leads SM beads Wound Beads Multi-Aperture Cores Round Cable Snap-Its Toroids Rods Antenna/RFID Rods Round EMI Suppression Cores **** Characteristic curves are measured on standard Toroids (18/10/6 mm) at 25°C and 10 kHz unless otherwise indicated. Impedance characteristics are measured on standard shield beads (3.5/1.3/6.0 mm) unless otherwise indicated.
