WeidmüllerGermany

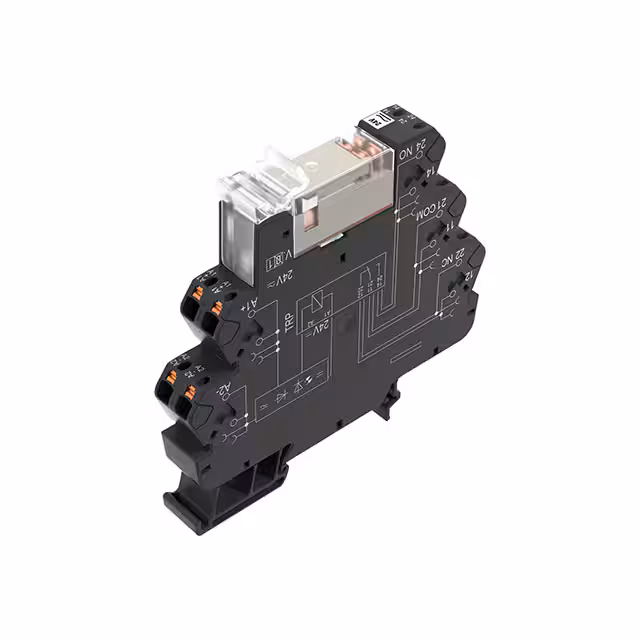

RELAY GEN PURPOSE SPDT 6A 120V
All alternatives
View full reportTechnical parameters
Key specs
Contact formSPDT
Contact current6 AMax
Switching voltage250 VMax
| Power | |
|---|---|
| Coil Voltage | 120VAC/DC |
| Contact Rating (Current) | 6 A |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Switching Voltage | 250VAC, 250VDC - Max |
| Environment and package | |
| Mounting Type | DIN Rail |
| Operating Temperature | -40°C~60°C |
| Package | Box |
| Other | |
| Coil Insulation | - |
| Coil Type | Non Latching |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Features | Lighted Indicator, Socket Included |
| Mfr | Weidmüller |
| Operate Time | 11 ms |
| Product Status | Active |
| Relay Type | General Purpose |
| Release Time | 40 ms |
| Seal Rating | - |
| Series | TERMSERIES |
| Termination Style | Spring Terminal |
