RubyconJapan

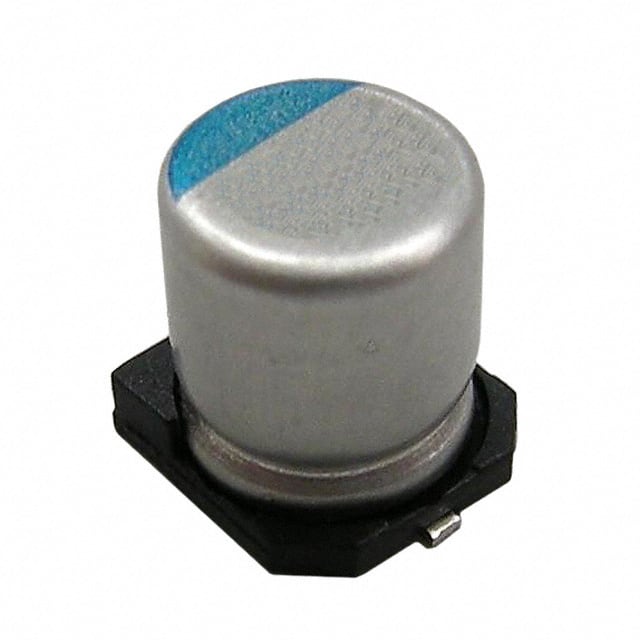

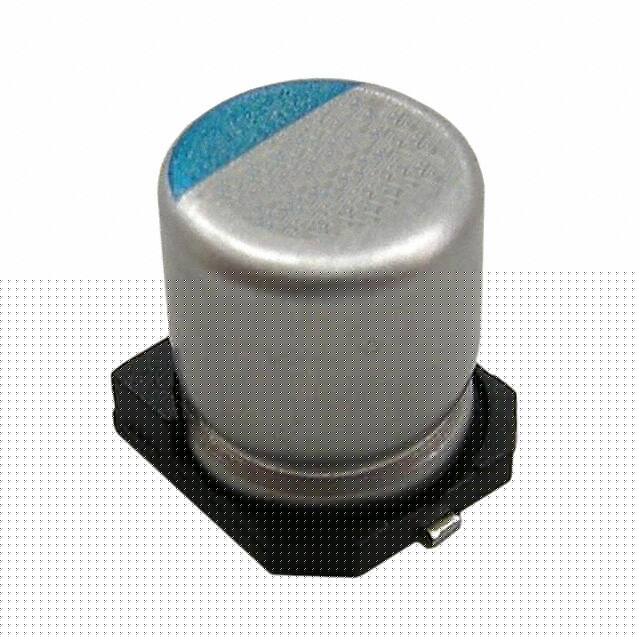

CAP ALUM POLY HYB 220UF 25V SMD
All alternatives
View full reportTechnical parameters
Key specs
Capacitance220 µF
Rated voltage25 V
Tolerance20 %
ESR22 mΩMax
Lifetime4 kh135°C
| Power | |
|---|---|
| Voltage - Rated | 25 V |
| AC and DC characteristics | |
| Ripple Current @ High Frequency | 2.9 A @ 100 kHz |
| Ripple Current @ Low Frequency | 145 mA @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Lifetime @ Temp. | 4000 Hrs @ 135°C |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~135°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Other | |
| Applications | Automotive |
| Capacitance | 220 µF |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lead Spacing | - |
| Mfr | Rubycon |
| Product Status | Active |
| Ratings | AEC-Q200 |
| Series | PHV |
| Tolerance | ±20% |
| Type | Hybrid |
