NorComp Inc.United States

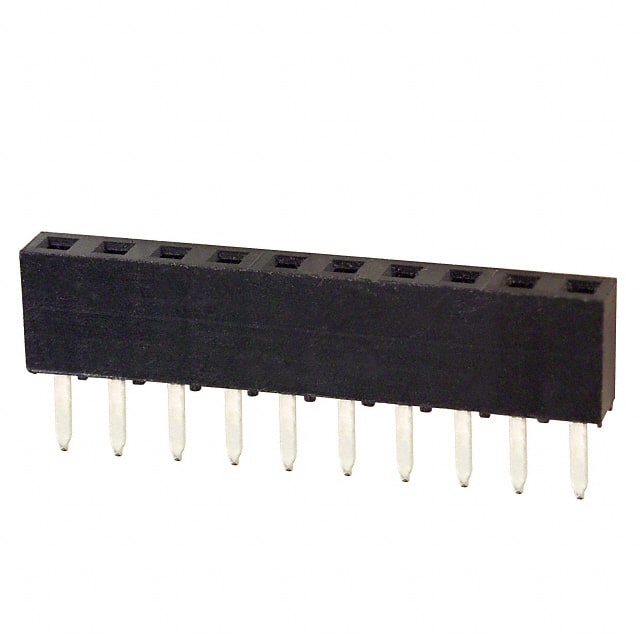

CONN RCPT 10POS 0.079 GOLD PCB
All alternatives
View full reportTechnical parameters
Key specs
Positions10
Rows1
Pitch2 mm
GenderFemale
Current rating1 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
| Environment and package | |

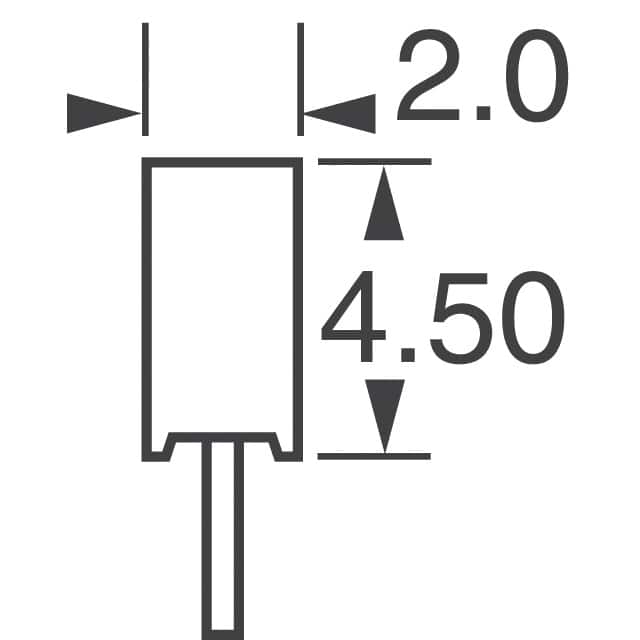

| Insulation Height | 0.169" (4.30mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~105°C |
| Package | Tube |
| Other | |
| Applications | - |
| Base Product Number | 2563100 |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Length - Post | 0.098" (2.50mm) |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Thermoplastic, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mfr | NorComp Inc. |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |

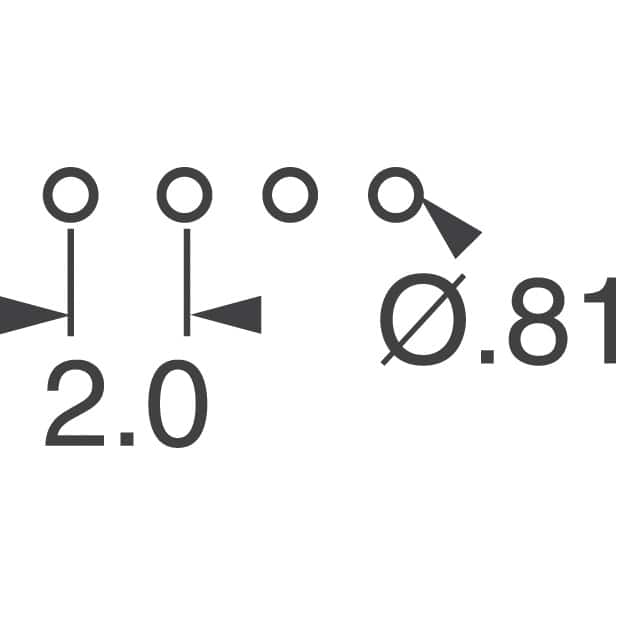

| Pitch - Mating | 0.079" (2.00mm) |
| Product Status | Active |
| Row Spacing - Mating | - |
| Series | 2563 |
| Style | - |
| Termination | Solder |
