Alpha WireUnited States
25534

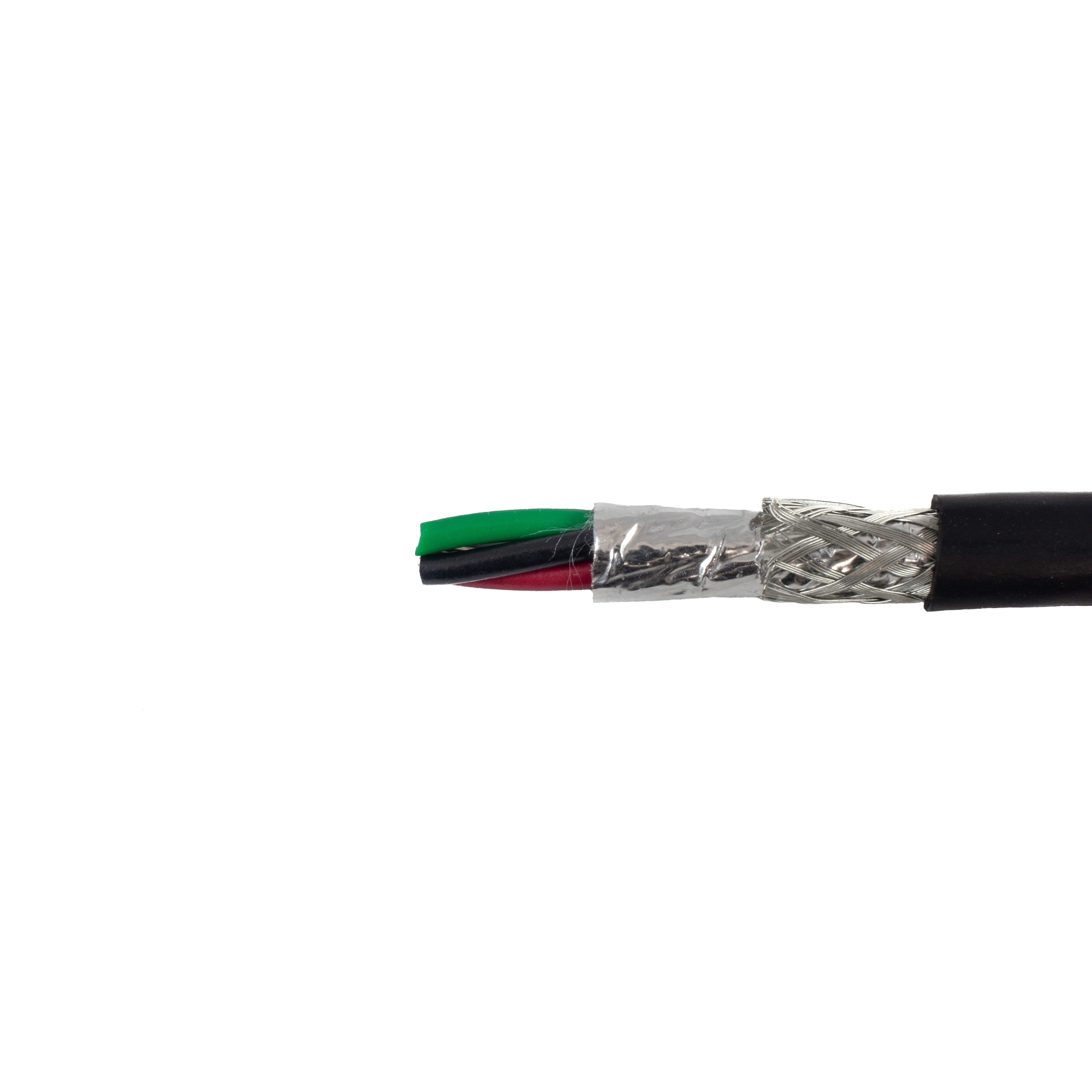

ActiveXtra-Guard 2 16 AWG 4 Conductor is a heavy-duty cable for use in industrial applications where abrasion and mechanical abuse is common.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 600 V RMS |
| Environment and package | |
| 1) Temperature Range | -30 to 90°C |
| Other | |
| (1) Color Code | Alpha Wire Color Code E |
| 1) Component 1 | 4 X 1 COND |
| 1) UL | a) Component 1 |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Cable Assembly | 4 Components Cabled |
| 2) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 2) Capacitance | 36 pF/ft @1 kHz, Nominal Conductor to Conductor |
| 3) CE | EU Low Voltage Directive 2014/35/EU |
| 3) Ground Capacitance | 65 pF/ft @1 kHz, Nominal |
| 3) Pull Tension | 107 Lbs, Maximum |
| 3) Shield | A/P/A Tape, 20% Overlap, Min. |
| 4) Inductance | 0.2 μH/ft, Nominal |
| 4) Sunlight Resistance | Yes |
| 5) Conductor DCR | 4.4 Ω/1000ft @20°C, Nominal |
| 6) OA Shield DCR | 1.95 Ω/1000ft @20°C, Nominal |
| a) 1000 FT | 24 x 14 x 12 Continuous length |
| a) Color(s) | Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White |
| a) Drain Wire | 16 (19/.0117) AWG Tinned Copper |
| a) Twists | 2.8 Twists/foot (min) |
| b) 500 FT | 18 x 14.25 x 8 Continuous length |
| b) Braid | Tinned Copper,70% Coverage, Nom. |
| b) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| b) Ripcord | 1 End 810 Denier Nylon |
| c) Core Wrap | Nonwoven Polyester Tape, 20% Overlap, Min. |
| Color | BLACK |
| Cond | 1 |
| c) Print | ALPHA WIRE-* P/N 25534 XTRAGUARD(R) 2 RU AWM 20669 VW-1 OR CRU AWM I/II A/B 90C 600 VOLTS FT1 CE ROHS (SEQ FOOTAGE) * = Factory Code |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
