Fair-Rite Products Corp.United States

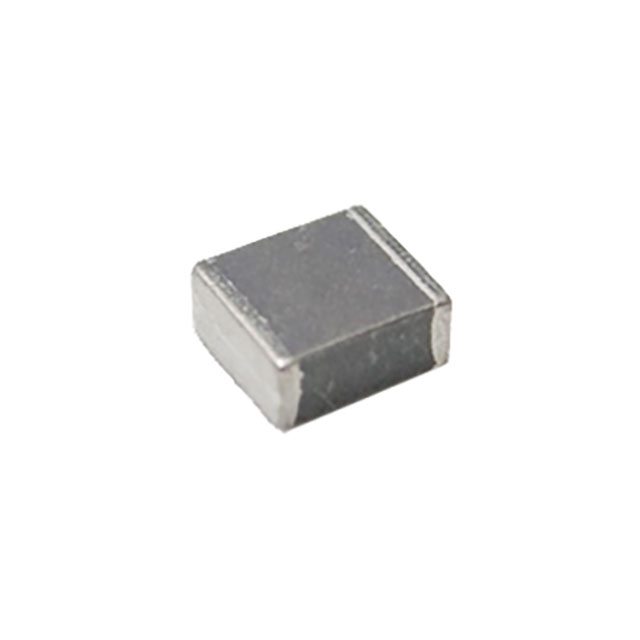

FERRITE BEAD 270 OHM 2220 1LN
All alternatives
View full reportTechnical parameters
Key specs
Impedance270 Ω100 MHz
Current rating4 AMax
DC resistance35 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 4A |
| AC and DC characteristics | |
| Impedance @ Frequency | 270 Ohms @ 100 MHz |
| Environment and package | |
| Height (Max) | 0.136" (3.45mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 2220 (5750 Metric) |
| Size / Dimension | 0.220" L x 0.200" W (5.59mm x 5.08mm) |
| Other | |
| DC Resistance (DCR) (Max) | 35mOhm |
| Filter Type | Signal Line |
| Mfr | Fair-Rite Products Corp. |
| Number of Lines | 1 |
| Product Status | Active |
| Ratings | - |
| Series | - |
