252219
AmphenolUnited States

252219

ActiveCoaxial Connector (RF) Assemblies

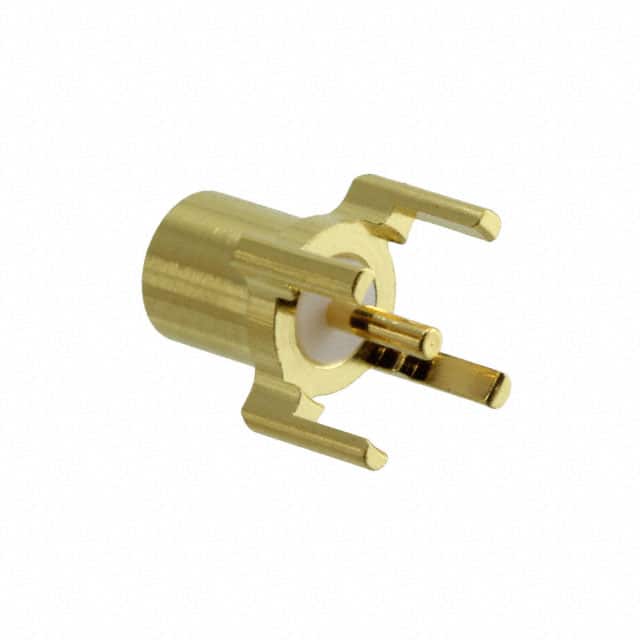

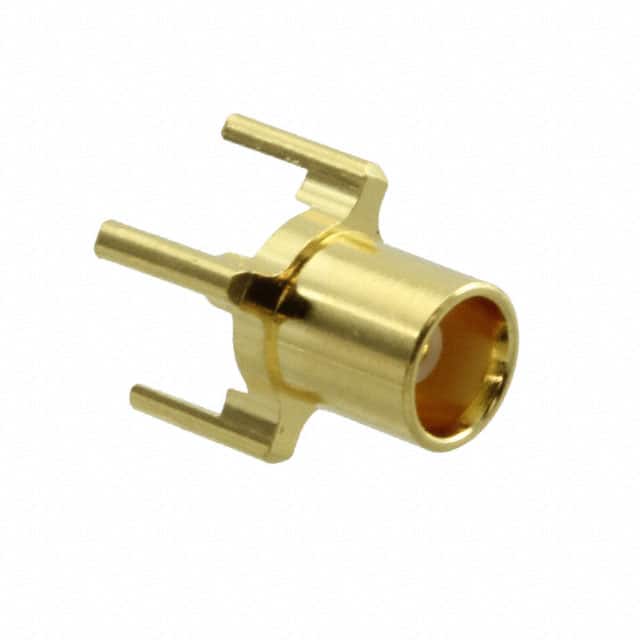

CONN MCX RCPT STR 50 OHM PCB

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Connector styleMCX
GenderFemale
Impedance50 Ω
Max frequency6 GHzMax
Power
Voltage Rating225 V
AC and DC characteristics
Frequency - Max6 GHz
Impedance50Ohm
Environment and package
Mounting Feature-
Mounting TypeThrough Hole
Operating Temperature-55°C~155°C
PackageBulk
Other
Base Product Number2522
Body FinishGold
Body MaterialBrass
Cable Group-
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleMCX
Connector TypeReceptacle, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
Features-
Housing ColorGold
Includes-
Ingress Protection-
Insertion Loss0.1dB
Mating Cycles500
MfrAmphenol RF
Number of Ports1
Product StatusActive
Series-
Shield TerminationSolder
