Fair-Rite Products Corp.United States

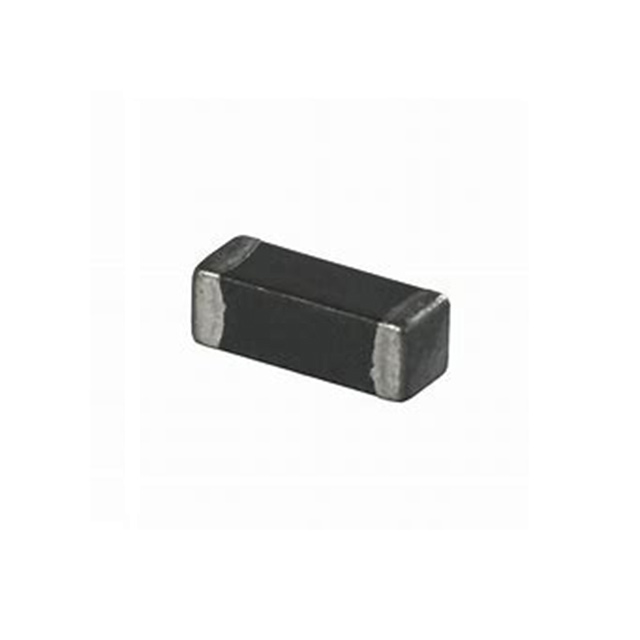

FERRITE BEAD 100 OHM 1806 1LN
All alternatives
View full reportTechnical parameters
Key specs
Impedance100 Ω100 MHz
Current rating400 mAMax
DC resistance300 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 400mA |
| AC and DC characteristics | |
| Impedance @ Frequency | 100 Ohms @ 100 MHz |
| Environment and package | |
| Height (Max) | 0.071" (1.80mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 1806 (4516 Metric) |
| Size / Dimension | 0.177" L x 0.063" W (4.50mm x 1.60mm) |
| Other | |
| DC Resistance (DCR) (Max) | 300mOhm |
| Features | - |
| Filter Type | Signal Line |
| Mfr | Fair-Rite Products Corp. |
| Number of Lines | 1 |
| Product Status | Active |
| Ratings | - |
| Series | - |
Documents
No documents are linked to this part yet.
