Fair-Rite Products Corp.United States

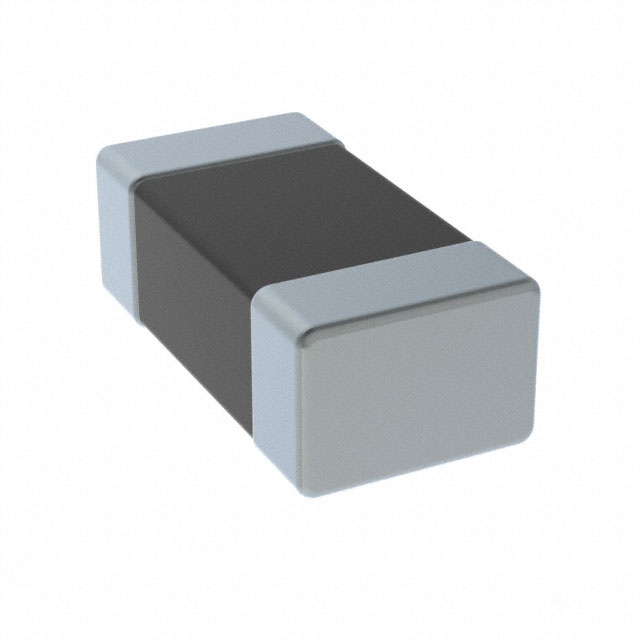

FERRITE BEAD 1206 4LN
All alternatives
View full reportTechnical parameters
Key specs
Impedance1 kΩ100 MHz
Current rating50 mAMax
DC resistance700 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 50mA |
| AC and DC characteristics | |
| Impedance @ Frequency | 1 kOhms @ 100 MHz |
| Environment and package | |
| Height (Max) | 0.039" (1.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric), Array, 8 PC Pad |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Other | |
| DC Resistance (DCR) (Max) | 700mOhm |
| Features | - |
| Filter Type | Signal Line |
| Mfr | Fair-Rite Products Corp. |
| Number of Lines | 4 |
| Product Status | Active |
| Ratings | - |
| Series | - |
Documents
No documents are linked to this part yet.
