Alpha WireUnited States
2463L

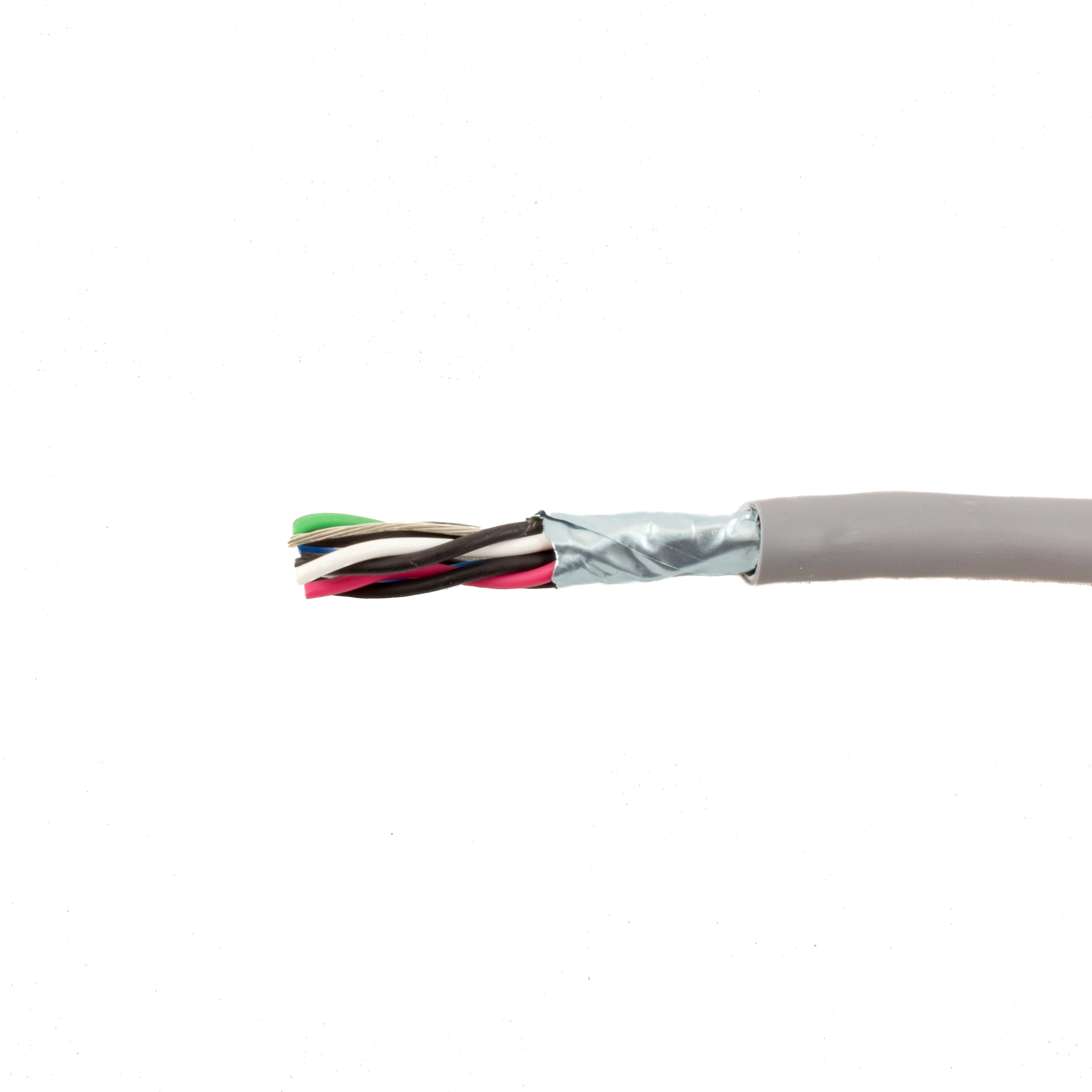

ActiveAlpha Wire's 22 AWG 4 Pair low smoke zero halogens communication and control cables are designed for rugged performance and suited to such applications as rapid transit industrial and commerical
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 300 V RMS |
| AC and DC characteristics | |
| 2) Characteristic Impedance | 53 Ω |
| Environment and package | |
| 1) Temperature Range | -20 to 75°C |
| Other | |
| 1) Component 1 | 4 X 1 PAIR |
| (1) Foil Direction | Foil Facing Out |
| 1) UL | -LS Low Smoke |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Cable Assembly | 4 Components Cabled |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) CE | EU Low Voltage Directive 2014/35/EU |
| 3) Inductance | 0.17 μH/ft, Nominal |
| 3) Pull Tension | 47.5 Lbs, Maximum |
| 4) Mutual Capacitance | 29 pF/ft @1 kHz, Nominal |
| 5) Ground Capacitance | 52 pF/ft @1 kHz, Nominal |
| 6) Conductor DCR | 16.2 Ω/1000ft @20°C, Nominal |
| 7) OA Shield DCR | 12 Ω/1000ft @20°C, Nominal |
| a) 1000 FT | 13.5 x 10 x 4 Continuous length |
| a) Color(s) | SLATE |
| a) Twists | 4.4 Twists/foot (min) |
| b) 500 FT | 12 x 5.94 x 5 Continuous length |
| b) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| b) Print | ALPHA WIRE-* P/N 2463L 4PR 22 AWG EXXXXXX SHIELDED 75C (UL) C(UL) TYPE CMG-LS --- LSZH CE ROHS * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] |
| c) 100 FT | 10.5 x 5 x 3.5 Continuous length |
| c) Drain Wire | 24 (7/32) AWG Tinned Copper |
| CMG | 75°C |
| Color | RED-BLACK |
| c) Pair | 2/Cond Cabled Together |
| d) Shield | Alum/Mylar Tape, 25% Overlap, Min. |
| Electrical Properties | (For Engineering purposes only) |
| -LS Low Smoke | CMG |
| Packaging | Flange x Traverse x Barrel (inches) |
| Pair | 1 |
