2463C

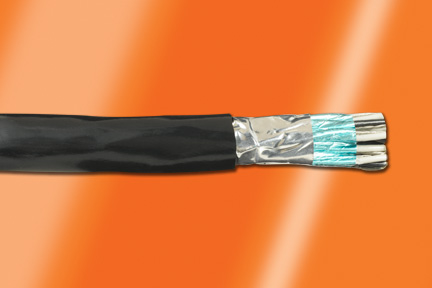

ActiveAlpha Wire 22 AWG, 4 Conductor Communication Cable provides precise signal transmission for computer and control applications
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 300 V RMS |
| AC and DC characteristics | |
| 2) Characteristic Impedance | 53 Ω |
| Environment and package | |
| 1) Temperature Range | -20 to 75°C |
| Other | |
| 1) Component 1 | 4 x 1 PAIR |
| (1) Foil Direction | Foil Facing Out |
| 1) UL | 2) CSA International |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Cable Assembly | 4 Components Cabled |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more detail. |
| 3) CE | EU Low Voltage Directive 2014/35/EU |
| 3) Inductance | 0.17 μH/ft, Nominal |
| 3) Pull Tension | 47.5 lbs. (max.) |
| 4) Mutual Capacitance | 29 pF/ft @1 kHz, Nominal |
| 5) Ground Capacitance | 52 pF/ft @1 kHz, Nominal |
| 6) Conductor DCR | 16.2 Ω/1000ft @20°C, Nominal |
| 75°C | 60°C |
| 7) OA Shield DCR | 12 Ω/1000ft @20°C, Nominal |
| a) 1000 FT | 13.5 x 10 x 4 Continuous Length |
| a) Color(s) | SLATE |
| a) Twists | 4.4 Twists/foot (min.) |
| b) 500 FT | 12 x 5.94 x 5 Continuous Length |
| b) Orientation | Components to be arranged from INSIDE LAYER-to-OUTSIDE LAYER |
| b) Print | ALPHA WIRE-* P/N 2463C 4PR 22 AWG SHIELDED 75C (UL) TYPE CM OR C(UL) TYPE CMG FT4 CE ROHS * = Factory Code Note: Product may have c(UL) or CSA markings depending upon plant of manufacture. |
| c) 100 FT | 10.5 x 5 x 3.5 Continuous Length |
| c) Drain Wire | 24 (7/32) AWG Tinned Copper |
| CM | CMG |
| Color | RED-BLACK |
| c) Pair | 2/Cond Cabled Together |
| d) Shield | Alum/Mylar Tape, 25% Overlap (min.) |
| Electrical Properties | For Engineering purposes only |
| Packaging | Flange x Traverse x Barrel (inches) |
| Pair | 1 |
