Alpha WireUnited States

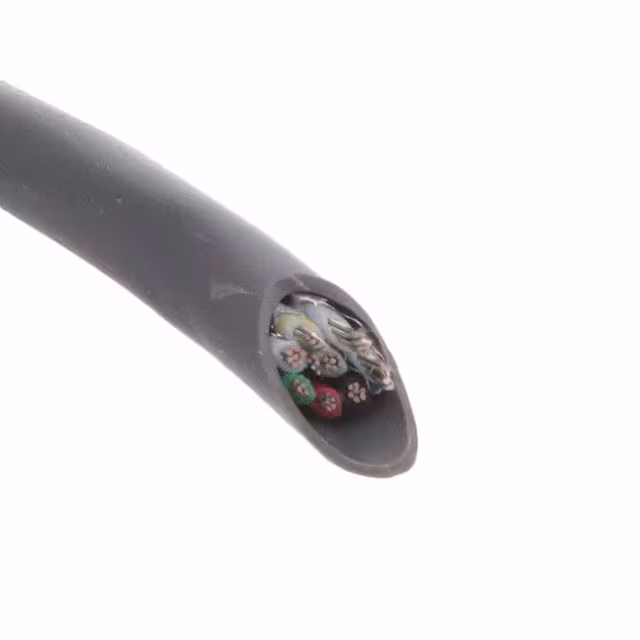

MULTI-PAIR 8COND 22AWG SHLD 500'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | -20°C~75°C |
| Package | Spool |
| Other | |
| Base Product Number | 2463C |
| Cable Type | Multi-Pair |
| Conductor Insulation | Polypropylene (PP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 7/30 |
| Features | Drain Wire |
| Jacket Color | Slate |
| Jacket (Insulation) Diameter | 0.230" (5.84mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.0200" (0.508mm) |
| Length | 500.0' (152.4m) |
| Mfr | Alpha Wire |
| Number of Conductors | 8 (4 Pair Twisted) |
| Product Status | Active |
| Ratings | - |
| Series | - |
| Shield Coverage | 100% |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Communication, Control |
| Wire Gauge | 22 AWG |
