Pomona ElectronicsUnited States

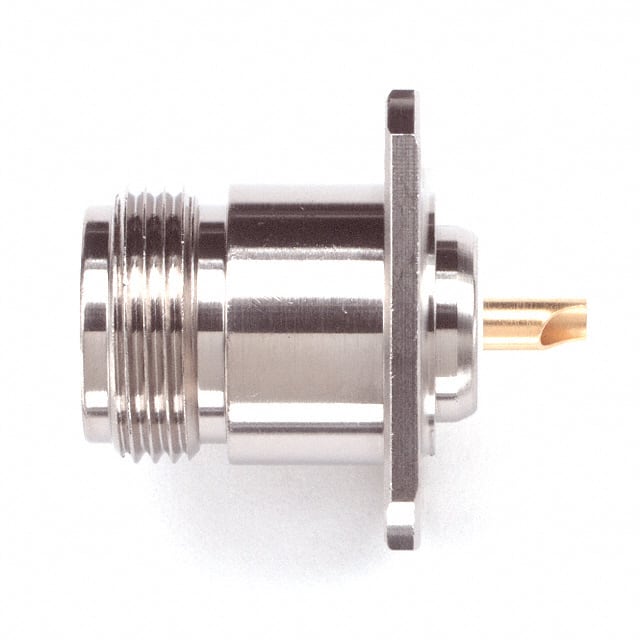

CONN N RCPT STR 50 OHM SOLDER
All alternatives
View full reportTechnical parameters
Key specs
Connector styleType N
GenderFemale
Impedance50 Ω
| Power | |
|---|---|
| Voltage Rating | 1000 V |
| AC and DC characteristics | |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Operating Temperature | -65°C~165°C |
| Package | Bulk |
| Other | |
| Base Product Number | - |
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | - |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | - |
| Housing Color | Silver |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | - |
| Mfr | Pomona Electronics |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Solder |
