TE ConnectivitySwitzerland

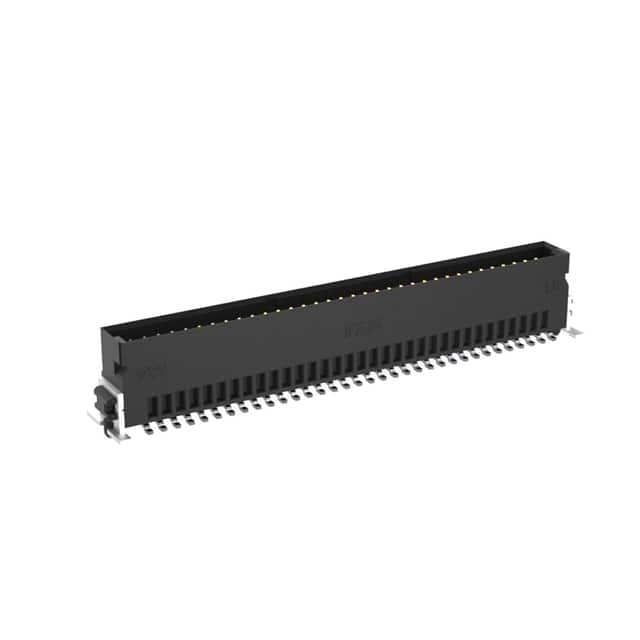

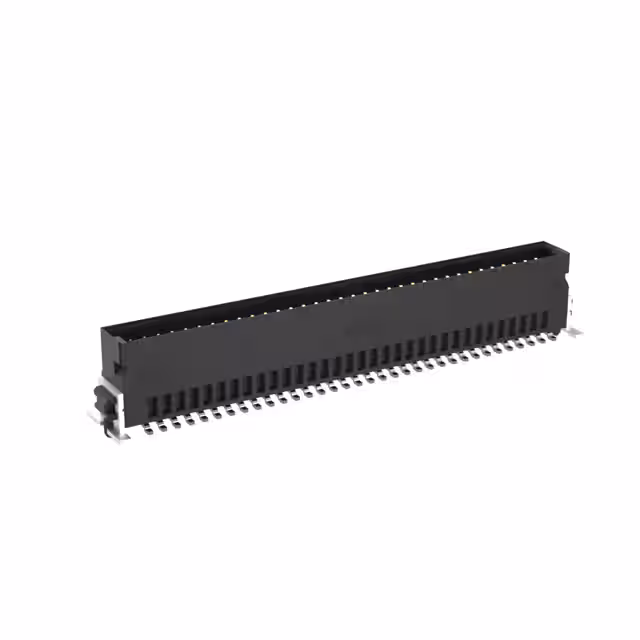

SMC M VERT Q 68POS SMT 3.25MM
All alternatives
View full reportTechnical parameters
Key specs
Positions68
Rows2
Pitch1.27 mm
GenderMale
Current rating1.7 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 1.7A per Contact |
| Voltage Rating | - |
| Environment and package | |
| Insulation Height | 0.325" (8.25mm) |
| Mated Stacking Heights | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Other | |
| Applications | - |
| Base Product Number | - |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish Thickness - Post | 157.5µin (4.00µm) |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | - |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Board Guide, Pick and Place, Solder Retention |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mfr | TE Connectivity Erni |
| Number of Positions | 68 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Overall Contact Length | - |
| Pitch - Mating | 0.050" (1.27mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Series | SMC |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board |
| Termination | Solder |
