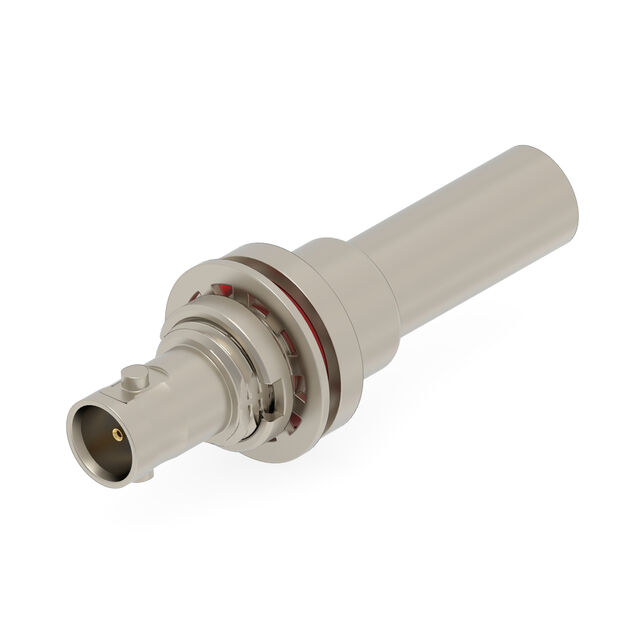

2446193-1
Coaxial Connector (RF) AssembliesHIGH DENSITY BNC JACK STR 75 OHM
All alternatives
View full reportTechnical parameters
Key specs
Connector styleBNC
GenderFemale
Impedance75 Ω
Max frequency12 GHzMax
| Power | |
|---|---|
| Voltage Rating | 335 V |
| AC and DC characteristics | |
| Frequency - Max | 12 GHz |
| Impedance | 75 Ohms |
| Environment and package | |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Panel Mount |
| Operating Temperature | -55°C ~ 125°C |
| Other | |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Belden 1855A, 4855R |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | BNC, HD |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Features | - |
| Housing Color | Silver |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | - |
| Mfr | TE Connectivity Linx |
| Number of Ports | 1 |
| Packaging | Bag |
| Part Status | Active |
| Series | - |
| Shield Termination | Crimp |
