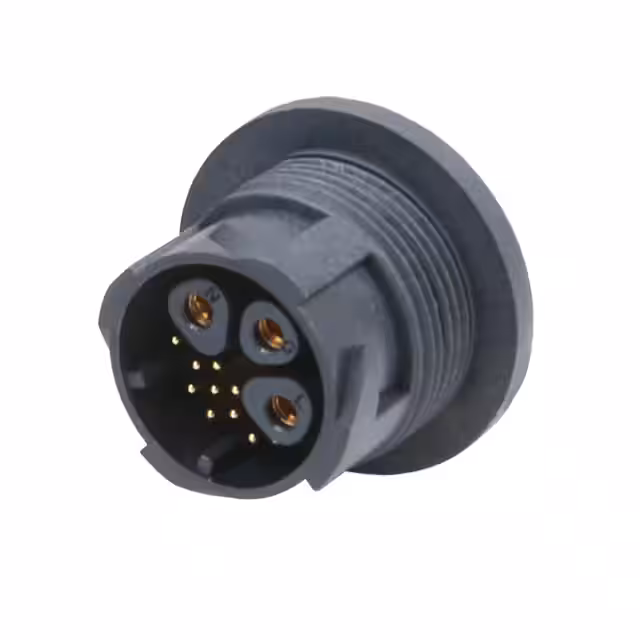

LARGE3+13 4KEY PANEL MOUNT PCB T
All alternatives
View full reportTechnical parameters
Key specs
Positions16
GenderFemale
Current rating20 AMax
| Power | |
|---|---|
| Current Rating (Amps) | 5A, 20A |
| Voltage Rating | 60VAC |
| Environment and package | |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Panel Mount, Through Hole |
| Operating Temperature | -40°C~105°C |
| Package | Box |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Other | |
| Applications | - |
| Backshell Material, Plating | - |
| Cable Opening | - |
| Color | Black |
| Connector Type | Receptacle, Female Sockets and Male Pins |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | - |
| Contact Material | Copper Alloy |
| Fastening Type | Push-Twist |
| Features | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | - |
| Material Flammability Rating | - |
| Mfr | Chogori Technologies Inc. |
| Number of Positions | 16 (13 + 3 Power) |
| Orientation | Keyed |
| Primary Material | Plastic |
| Product Status | Active |
| Series | Large |
| Shell Finish | - |
| Shell Material | Polyamide (PA), Nylon |
| Shielding | Unshielded |
| Termination | Solder |
