Adafruit Industries LLCUnited States

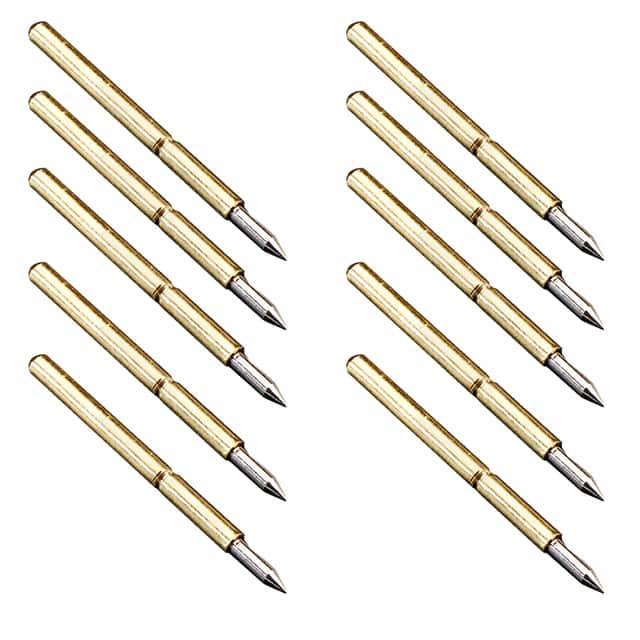

CONTACT SPRING LOADED SMD 10PC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Environment and package | |
| Maximum Working Height | 0.630" (16.00mm) |
| Minimum Working Height | 0.512" (13.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | - |
| Package | - |
| Pad Layout Dimension | - |
| Plunger Size | 0.028" (0.70mm) Dia |
| Recommended Working Height | - |
| Other | |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Contact Material | - |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Features | Needle Head |
| Material Flammability Rating | - |
| Mating Cycles | - |
| Mfr | Adafruit Industries LLC |
| Operating Force - Initial | - |
| Operating Force - Mid Compression | - |
| Product Status | Active |
| Series | - |
Documents
No documents are linked to this part yet.
