ActiveCoaxial Connector (RF) Adapters

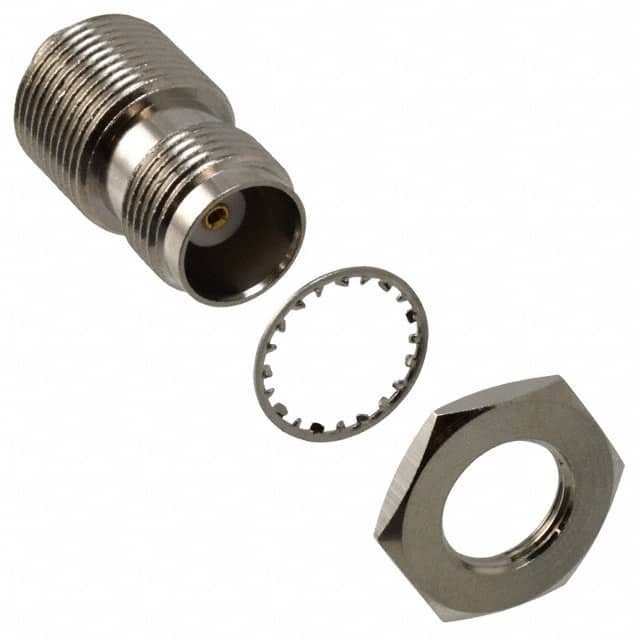

CONN ADAPT MCX JACK TO TNC JACK

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

AC and DC characteristics
Frequency - Max6 GHz
Impedance50Ohm
Environment and package
Mounting FeatureBulkhead
Mounting TypePanel Mount
Operating Temperature-65°C~165°C
PackageBulk
Other
Adapter SeriesMCX to TNC
Adapter TypeJack to Jack
Base Product Number2422
Body FinishNickel
Body MaterialBrass
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Center GenderFemale to Female
Conversion TypeBetween Series
Convert From (Adapter End)MCX Jack, Female Socket
Convert To (Adapter End)TNC Jack, Female Socket
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On, Threaded
Features-
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Ingress Protection-
Insertion Loss-
Mating Cycles-
MfrAmphenol RF
Product StatusActive
Series-
StyleStraight
