ActiveCoaxial Connector (RF) Adapters

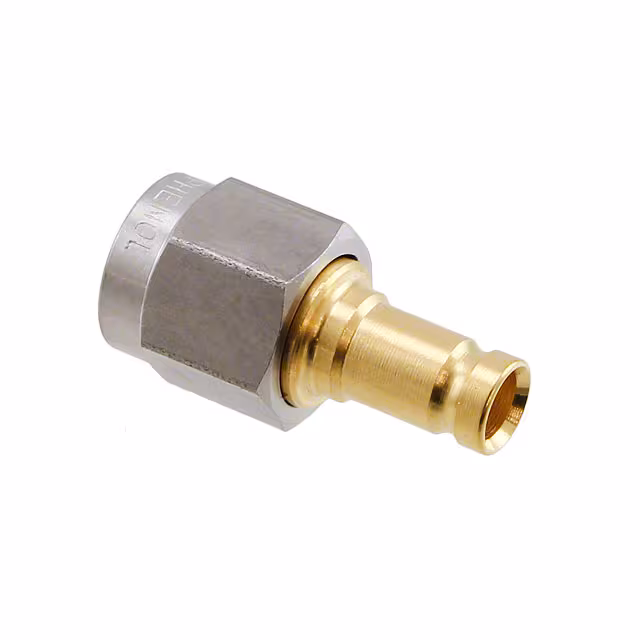

CONN ADAPT SMA PLUG-1.0/2.3 JACK

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

AC and DC characteristics
Frequency - Max4 GHz
Impedance50Ohm
Environment and package
Mounting Feature-
Mounting TypeFree Hanging (In-Line)
Operating Temperature-40°C~85°C
PackageBag
Other
Adapter SeriesSMA to 1.0/2.3
Adapter TypePlug to Jack
Base Product Number2422
Body FinishGold; Passivated
Body MaterialStainless Steel
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Center GenderFemale to Male
Conversion TypeBetween Series
Convert From (Adapter End)SMA Plug, Male Pin
Convert To (Adapter End)1.0/2.3 Jack, Female Socket
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On, Threaded
Features-
Includes-
Ingress Protection-
Insertion Loss-
Mating Cycles500
MfrAmphenol RF
Product StatusActive
Series-
StyleStraight
