242201RP
AmphenolUnited States

242201RP

ActiveCoaxial Connector (RF) Adapters

CONN ADAPT UMC JACK-RP SMA JACK

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

AC and DC characteristics
Frequency - Max6 GHz
Impedance50Ohm
Environment and package
Mounting FeatureBulkhead
Mounting TypePanel Mount
Operating Temperature-65°C~165°C
PackageBulk
Other
Adapter SeriesRP-SMA to U.FL (UMCC), AMC
Adapter TypeJack to Jack
Base Product Number242201
Body FinishGold
Body MaterialBrass
Center Contact MaterialBrass
Center Contact PlatingGold
Center GenderMale to Male
Conversion TypeBetween Series
Convert From (Adapter End)RP-SMA Jack, Male Pin
Convert To (Adapter End)U.FL (UMCC) Jack, Male Pin
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On, Threaded
Features-

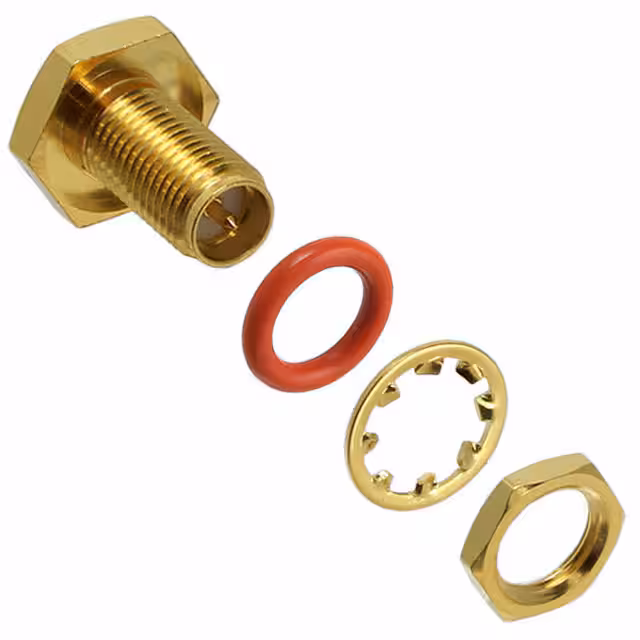

Includes4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut
Ingress Protection-
Insertion Loss-
Mating Cycles-
MfrAmphenol RF
Product StatusActive
Series-
StyleStraight
