Alpha WireUnited States
2412C

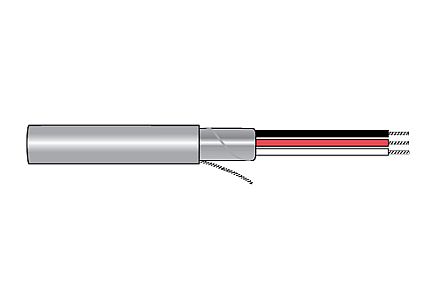

ActiveAlpha Wire 20 AWG, 2 Conductor Communication Cable provides precise signal transmission for computer and control applications
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 300 V RMS |
| AC and DC characteristics | |
| 4) Characteristic Impedance | 63 Ω |
| Environment and package | |
| 1) Temperature Range | -20 to 75°C |
| Other | |
| (1) Color Code | Alpha Wire Color Code D |
| 1) Component 1 | 2 x 1 COND |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Cable Assembly | 2 Components Cabled |
| 2) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 2) Capacitance | 26 pF/ft @1 kHz, Nominal Conductor to Conductor |
| 3) CE | EU Low Voltage Directive 2014/35/EU |
| 3) Ground Capacitance | 47 pF/ft @1 kHz, Nominal |
| 3) Pull Tension | 26 Lbs, Maximum |
| 3) Shield | Alum/Mylar Tape, 25% Overlap (min.) |
| 5) Inductance | 0.19 μH/ft, Nominal |
| 60°C / 300 V RMS | 75°C |
| 6) Conductor DCR | 10.2 Ω/1000ft @20°C, Nominal |
| 7) OA Shield DCR | 8.2 Ω/1000ft @20°C, Nominal |
| a) 1000 FT | 11 x 8.5 x 5 Continuous length |
| a) Color(s) | SLATE |
| a) Foil Direction | Foil Facing Out |
| a) Twists | 6.0 Twists/foot (min.) |
| AWM/STYLE 2092 | CMG |
| b) BOX 1000FT | 9-1/2 EASY REEL: Continuous length |
| b) Drain Wire | 20 (7/28) AWG Tinned Copper |
| b) Orientation | Components to be arranged from INSIDE LAYER-to-OUTSIDE LAYER |
| b) Print | ALPHA WIRE-* P/N 2412C 2C 20 AWG SHIELDED 75C (UL) TYPE CMG OR AWM 2092 ---- C(UL) CMG FT4 CE ROHS * = Factory Code Note: Product may have c(UL) or CSA markings depending upon plant of manufacture. |
| c) BOX 500FT | 7-5/8 EASY REEL: Continuous length |
| CMG | 75°C |
| Color | BLACK |
| Cond | 1 |
| d) 500 FT | 10.5 x 5 x 3.5 Continuous length |
| e) 100 FT | 6.5 x 4 x 2.5 Continuous length |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
