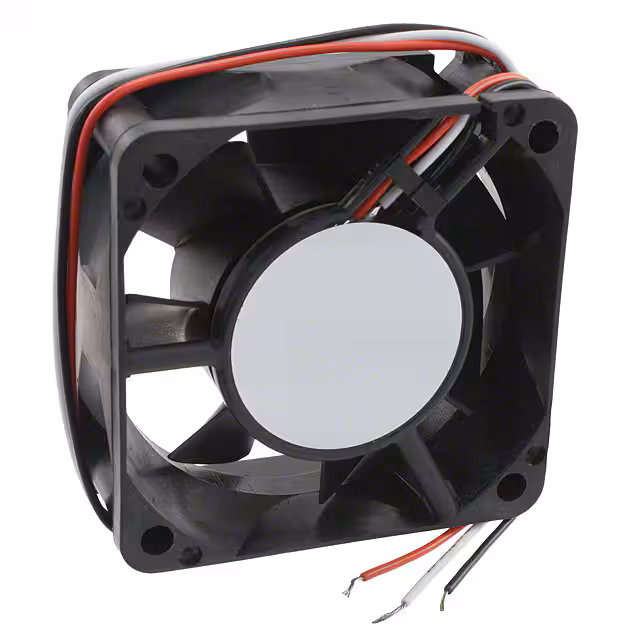

FAN AXIAL 60X25MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.120A |
| Power (Watts) | 1.44 W |
| Voltage Range | 6 ~ 13.8VDC |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 28.0dB |
| Environment and package | |
| Lifetime @ Temp. | - |
| Operating Temperature | 14~158°F(-10~70°C) |
| Package | Box |
| Size / Dimension | Square - 60mm L x 60mm H |
| Other | |
| Air Flow | 16.9 CFM (0.473m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Locked Rotor Sensor |
| Ingress Protection | - |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Mfr | NMB Technologies Corporation |
| Product Status | Obsolete |
| RPM | 3600 RPM |
| Series | 2410ML |
| Static Pressure | 0.128 in H2O (31.9 Pa) |
| Termination | 3 Wire Leads |
| Weight | 0.144 lb (65.32 g) |
| Width | 25.00mm |
