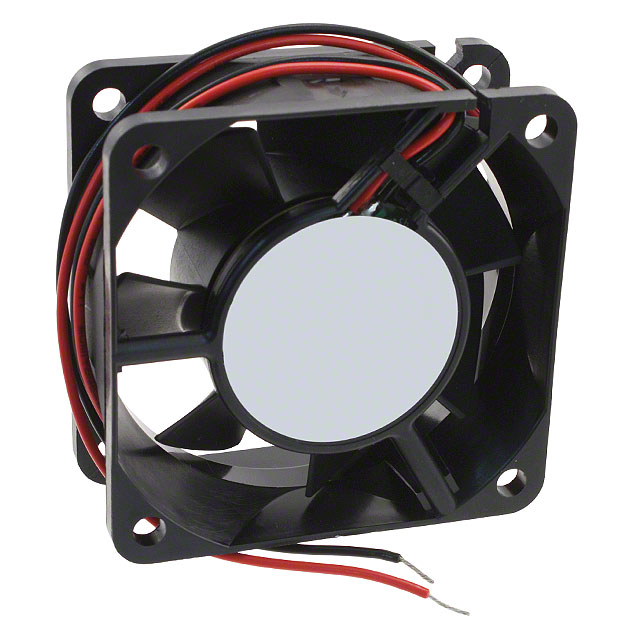

2410ML-04W-B20-B00
NMB Technologies CorporationJapan

2410ML-04W-B20-B00

DC Brushless Fans (BLDC)

FAN AXIAL 60X25MM 12VDC WIRE

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Current Rating (Amps)0.120A
Power (Watts)1.44 W
Voltage Range6 ~ 13.8VDC
Voltage - Rated12VDC
AC and DC characteristics
Noise28.0dB
Environment and package
Lifetime @ Temp.-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Size / DimensionSquare - 60mm L x 60mm H
Other
Air Flow16.9 CFM (0.473m³/min)
Approval AgencyCE, CSA, UL, VDE
Base Product Number2410ML
Bearing TypeBall
Fan TypeTubeaxial
FeaturesAuto Restart
Ingress Protection-
Material - BladePlastic
Material - FramePlastic
MfrNMB Technologies Corporation
PackagingBulk
Part StatusObsolete
RPM3600 RPM
Series2410ML
Static Pressure0.128 in H2O (31.9 Pa)
Termination2 Wire Leads
Weight0.144 lb (65.32 g)
Width25.00mm

Documents

No documents are linked to this part yet.
