KnowlesUnited States

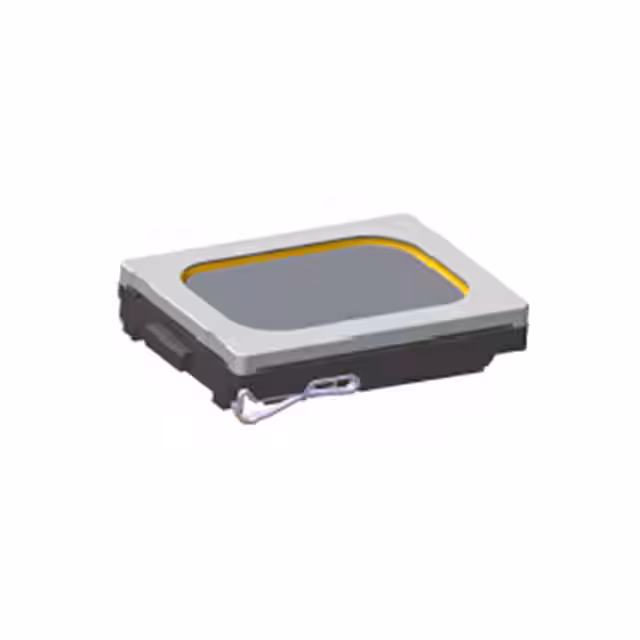

SPEAKER 8OHM 600MW TOP PORT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Power - Max | 1.2 W |
| Power - Rated | 600 mW |
| AC and DC characteristics | |
| Frequency Range | 300 Hz ~ 17 kHz |
| Frequency - Self Resonant | 800Hz |
| Impedance | 8 Ohms |
| Environment and package | |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Package | Tray |
| Size / Dimension | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
| Other | |
| Efficiency - dBA | 73.50 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Ingress Protection | - |
| Material - Cone | Foil |
| Material - Magnet | Nd-Fe-B |
| Mfr | Knowles |
| Port Location | Top |
| Product Status | Obsolete |
| Ratings | - |
| Series | Donau Slim |
| Shape | Rectangular |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
